WP on Toshiba Chromebook 2 without heat sink

Support Device Recommendation
1

I have (according to the mrchromebox script) a GANDOF board Toshiba CB30/35. I’ve seen doc for this that suggests the RW jumper is under the heat sink, but i don’t have a heatsink, nor can i see anything that looks like a jumper, nor particularly a screw (well, there are lots, of course, but which?).

I’ve looked at a bunch of images on mrchromebox, but actually this specific model doesn’t have a link (it says “screw”, but other CB30/35 doc suggests jumper). Image attached. Appreciate any help

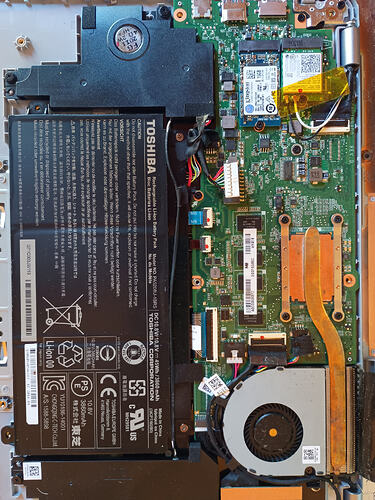

IMG_20251229_152229224
IMG_20251229_1522292241920×2560 1.28 MB

2

Isn’t it the screw that’s right next to CN24?

3

it’s the screw next to the WiFi module with the white arrow pointing to it, with the metallic disc underneath. That may be a sticker of sorts which needs to be removed.

4

thank you
