Mouse doesn't work properly

Ubisoft_Farcry · July 11, 2026, 3:17am

System Details

Device: [fizz]
OS: [Linux, Windows]
Firmware Type: [UEFI Full ROM]
Firmware Version: [MrChromebox_2026.06]
Internal storage type: [NVMe] (if applicable)

Summary of the Issue

[Mouse doesn’t work in the firmware setup.]

Steps to Reproduce

Updated the firmware by the script. Reboot and press ESC key.
A new UI appears, and a mouse pointer in the middle of the screen.
When I move the mouse to the left, the pointer moves up. When I move the mouse to the right, the pointer moves down. And the pointer moves to the right when any button pressed, and can’t get back.

Expected Behavior

[Mouse works properly, the pointer moves as I expected, the button founctions as it should be.]

MrChromebox · July 11, 2026, 6:07pm

not able to reproduce here on TEEMO (fizz) with 2606.0 release firmware.

what brand/model mouse is being used? connected how?

Ubisoft_Farcry · July 12, 2026, 12:36am

It’s called YICHIP Wireless Device.

Bus 001 Device 002: ID 3151:3020 YICHIP Wireless Device

and no further info.

Ubisoft_Farcry · July 12, 2026, 12:51am

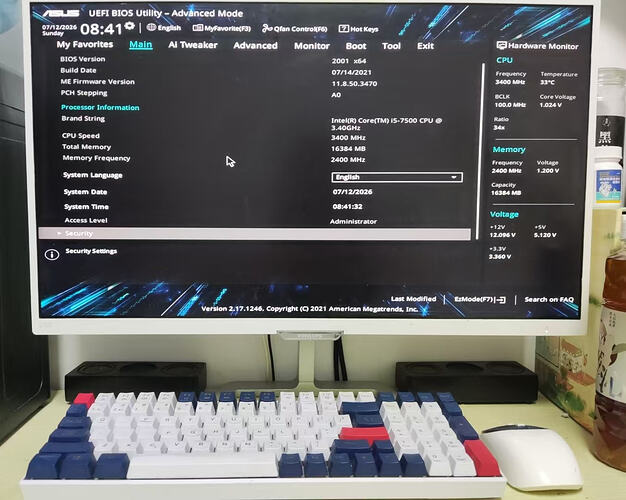

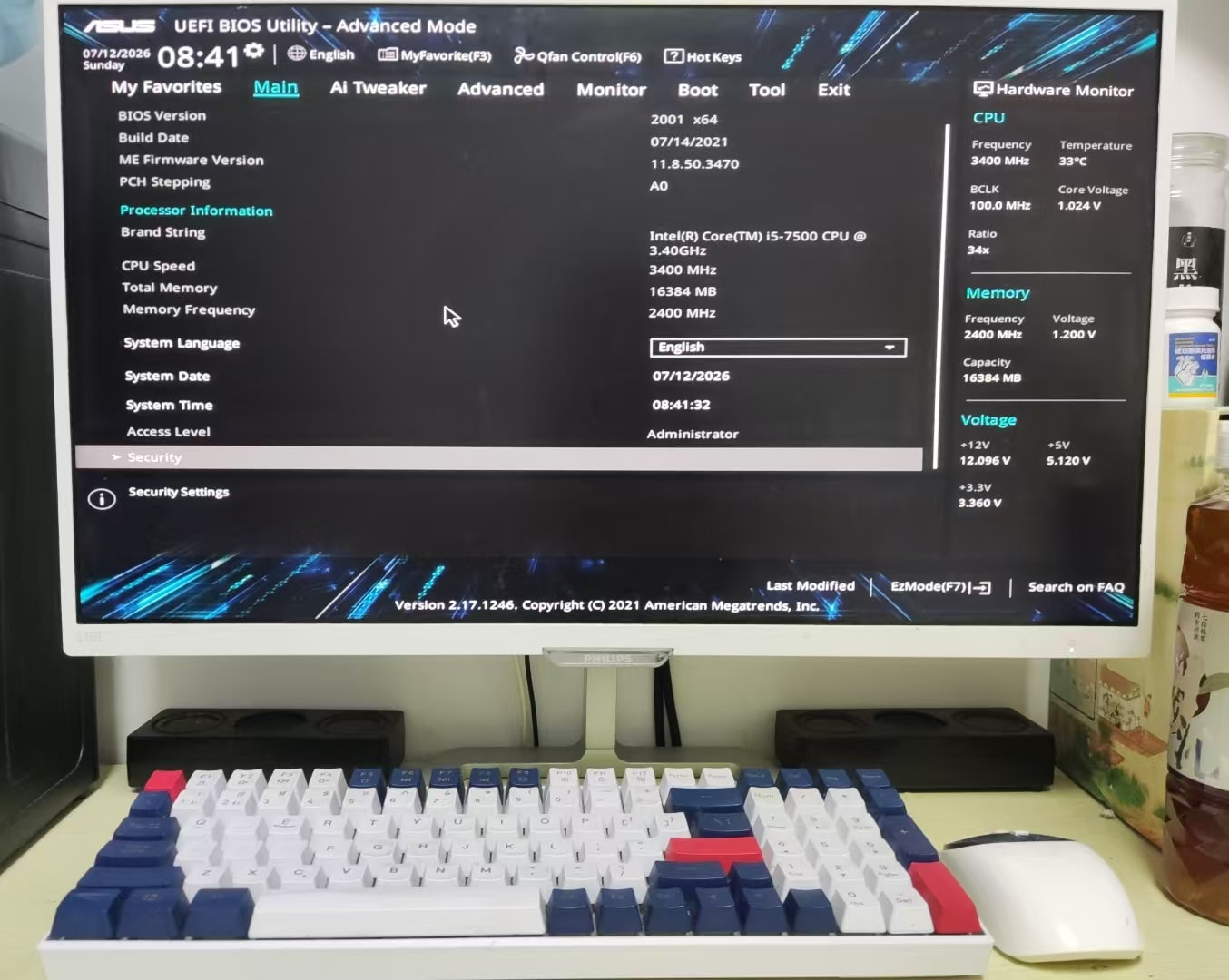

It works well on any Windows, Ubuntu、Debian based OSes, Android TVboxes, Normal BIOS firmwares like ASUS、Gigabyte：

MrChromebox · July 12, 2026, 12:53am

not even sure how to begin to debug this TBH

Ubisoft_Farcry · July 12, 2026, 1:11am

It’s not a serious thing, but it’s terrible for someone with OCD.

Ubisoft_Farcry · July 12, 2026, 1:27am

Maybe something wrong with the driver. This might be helpful:https://www.bing.com/search?q=ID%203151%3A3020

potatobook · July 12, 2026, 7:14am

Hold it like this:

MrChromebox · July 12, 2026, 2:37pm

from linux:

lsusb -d VVVV:DDDD -v
sudo usbhid-dump -d VVVV:DDDD

where VVVV is the vendor ID and DDDD is the device ID

guessing there is a HID report in there that muxes the orientation

Ubisoft_Farcry · July 12, 2026, 5:12pm

Nice joke🤣! But the left/right directions are locked. and can’t click any item because all the button you pressed will make the cursor move to the right direction. until out of the screen. you can’t make it back from unless you reboot.

Ubisoft_Farcry · July 12, 2026, 5:13pm

I’ll try it tomorrow. Thank you.

Ubisoft_Farcry · July 12, 2026, 11:58pm

Here are the results:

lsusb -d 3151:3020 -v

Bus 001 Device 004: ID 3151:3020 YICHIP Wireless Device
Couldn’t open device, some information will be missing
Negotiated speed: Full Speed (12Mbps)
Device Descriptor:
bLength 18
bDescriptorType 1
bcdUSB 2.00
bDeviceClass 0 [unknown]
bDeviceSubClass 0 [unknown]
bDeviceProtocol 0
bMaxPacketSize0 64
idVendor 0x3151 YICHIP
idProduct 0x3020 Wireless Device
bcdDevice 0.02
iManufacturer 1 YICHIP
iProduct 2 Wireless Device
iSerial 3 b120300001
bNumConfigurations 1
Configuration Descriptor:
bLength 9
bDescriptorType 2
wTotalLength 0x003b
bNumInterfaces 2
bConfigurationValue 1
iConfiguration 0
bmAttributes 0xa0
(Bus Powered)
Remote Wakeup
MaxPower 100mA
Interface Descriptor:
bLength 9
bDescriptorType 4
bInterfaceNumber 0
bAlternateSetting 0
bNumEndpoints 1
bInterfaceClass 3 Human Interface Device
bInterfaceSubClass 1 Boot Interface Subclass
bInterfaceProtocol 1 Keyboard
iInterface 0
HID Device Descriptor:
bLength 9
bDescriptorType 33
bcdHID 2.00
bCountryCode 0 Not supported
bNumDescriptors 1
bDescriptorType 34 (null)
wDescriptorLength 63
Report Descriptors:
** UNAVAILABLE **
Endpoint Descriptor:
bLength 7
bDescriptorType 5
bEndpointAddress 0x81 EP 1 IN
bmAttributes 3
Transfer Type Interrupt
Synch Type None
Usage Type Data
wMaxPacketSize 0x0040 1x 64 bytes
bInterval 2
Interface Descriptor:
bLength 9
bDescriptorType 4
bInterfaceNumber 1
bAlternateSetting 0
bNumEndpoints 1
bInterfaceClass 3 Human Interface Device
bInterfaceSubClass 1 Boot Interface Subclass
bInterfaceProtocol 2 Mouse
iInterface 0
HID Device Descriptor:
bLength 9
bDescriptorType 33
bcdHID 2.00
bCountryCode 0 Not supported
bNumDescriptors 1
bDescriptorType 34 (null)
wDescriptorLength 163
Report Descriptors:
** UNAVAILABLE **
Endpoint Descriptor:
bLength 7
bDescriptorType 5
bEndpointAddress 0x82 EP 2 IN
bmAttributes 3
Transfer Type Interrupt
Synch Type None
Usage Type Data
wMaxPacketSize 0x0040 1x 64 bytes
bInterval 2

sudo usbhid-dump -d 3151:3020
Enter password:
Verified

001:004:001:DESCRIPTOR 1783900285.019297
05 01 09 02 A1 01 85 01 09 01 A1 00 05 09 19 01
29 05 15 00 25 01 95 05 75 01 81 02 95 01 75 03
81 01 05 01 09 30 09 31 16 01 F8 26 FF 07 75 10
95 02 81 06 09 38 15 81 25 7F 75 08 95 01 81 06
05 0C 0A 38 02 95 01 81 06 C0 C0 05 01 09 80 A1
01 85 02 05 01 19 81 29 88 15 00 25 01 95 08 75
01 81 06 C0 05 0C 09 01 A1 01 85 03 15 00 26 80
03 19 00 2A 80 03 75 10 95 01 81 00 C0 06 00 FF
09 0E A1 01 85 BA 95 1F 75 08 26 FF 00 15 00 09
01 91 02 85 BA 95 1F 75 08 26 FF 00 15 00 09 01
81 02 C0

001:004:000:DESCRIPTOR 1783900285.022012
05 01 09 06 A1 01 75 01 95 08 05 07 19 E0 29 E7
15 00 25 01 81 02 95 01 75 08 81 03 95 05 75 01
05 08 19 01 29 05 91 02 95 01 75 03 91 03 95 06
75 08 15 00 25 FF 05 07 19 00 29 FF 81 00 C0

MrChromebox · July 13, 2026, 12:03am

re-run the lsusb command with sudo plz

Ubisoft_Farcry · July 13, 2026, 12:10am

sudo lsusb -d 3151:3020 -v

Enter password:
Verified

Bus 001 Device 004: ID 3151:3020 YICHIP Wireless Device
Negotiated speed: Full Speed (12Mbps)
Device Descriptor:
bLength 18
bDescriptorType 1
bcdUSB 2.00
bDeviceClass 0 [unknown]
bDeviceSubClass 0 [unknown]
bDeviceProtocol 0
bMaxPacketSize0 64
idVendor 0x3151 YICHIP
idProduct 0x3020 Wireless Device
bcdDevice 0.02
iManufacturer 1 YICHIP
iProduct 2 Wireless Device
iSerial 3 b120300001
bNumConfigurations 1
Configuration Descriptor:
bLength 9
bDescriptorType 2
wTotalLength 0x003b
bNumInterfaces 2
bConfigurationValue 1
iConfiguration 0
bmAttributes 0xa0
(Bus Powered)
Remote Wakeup
MaxPower 100mA
Interface Descriptor:
bLength 9
bDescriptorType 4
bInterfaceNumber 0
bAlternateSetting 0
bNumEndpoints 1
bInterfaceClass 3 Human Interface Device
bInterfaceSubClass 1 Boot Interface Subclass
bInterfaceProtocol 1 Keyboard
iInterface 0
HID Device Descriptor:
bLength 9
bDescriptorType 33
bcdHID 2.00
bCountryCode 0 Not supported
bNumDescriptors 1
bDescriptorType 34 (null)
wDescriptorLength 63
Report Descriptors:
** UNAVAILABLE **
Endpoint Descriptor:
bLength 7
bDescriptorType 5
bEndpointAddress 0x81 EP 1 IN
bmAttributes 3
Transfer Type Interrupt
Synch Type None
Usage Type Data
wMaxPacketSize 0x0040 1x 64 bytes
bInterval 2
Interface Descriptor:
bLength 9
bDescriptorType 4
bInterfaceNumber 1
bAlternateSetting 0
bNumEndpoints 1
bInterfaceClass 3 Human Interface Device
bInterfaceSubClass 1 Boot Interface Subclass
bInterfaceProtocol 2 Mouse
iInterface 0
HID Device Descriptor:
bLength 9
bDescriptorType 33
bcdHID 2.00
bCountryCode 0 Not supported
bNumDescriptors 1
bDescriptorType 34 (null)
wDescriptorLength 163
Report Descriptors:
** UNAVAILABLE **
Endpoint Descriptor:
bLength 7
bDescriptorType 5
bEndpointAddress 0x82 EP 2 IN
bmAttributes 3
Transfer Type Interrupt
Synch Type None
Usage Type Data
wMaxPacketSize 0x0040 1x 64 bytes
bInterval 2
Device Status: 0x0000
(Bus Powered)

MrChromebox · July 13, 2026, 12:13am

the edk2 mouse driver assumes that the mouse device supports the boot protocol, but your device does not, so I have to implement a more robust HID parser or a device quirk

Ubisoft_Farcry · July 13, 2026, 12:16am

Thanks for your hard work！

MrChromebox · July 13, 2026, 1:50am

edit: test build removed

Ubisoft_Farcry · July 13, 2026, 3:15am

It works! very well. you’re the great godlike expert!

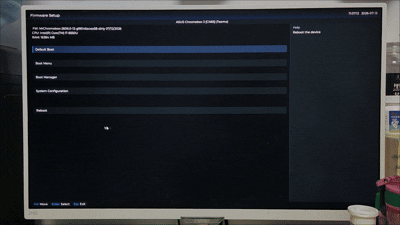

VID_20260713_110816

MrChromebox · July 14, 2026, 5:22pm

Fixed in 2606.1 release

Ubisoft_Farcry · July 14, 2026, 8:56pm

Yes, thank you very much!
