Google Meet Series One (Lenovo/Genesis/Intel 10gen) - Using not original PSU?

Support General Device Support
1

System Details

  • Device: Genesis
  • OS: ChromeOS
  • Firmware Type: ?
  • Firmware Version: ?
  • Internal storage type: Nvme

Summary of the Issue

Hello,

i have got some of these devices (Genesis), but i dont have original power supply with 19V&54V outputs.
I know, that on older version of this device is possible to power it in only with 19V PSU but it looks like it is not possible in this device with 10gen intel.

After connect laboratory power supply fan starts spinning for two seconds - so powering of board looks good, but it does not reacts to power ON button.

Visually it looks , like is 54V only for powering lan ports but i am not sure - maybe is here detection if is 54V present or not?

Does anyone know trick how to switch it on only with 19V ?

Thank you :slight_smile:

2

Hi

Im getting one of these just like yours: 10gen intel. My package is still with the courier.

Btw, did you manage to turn on the device with only 19v? Or it does need the 54V as well?

Will be glad to hear from your experience

3

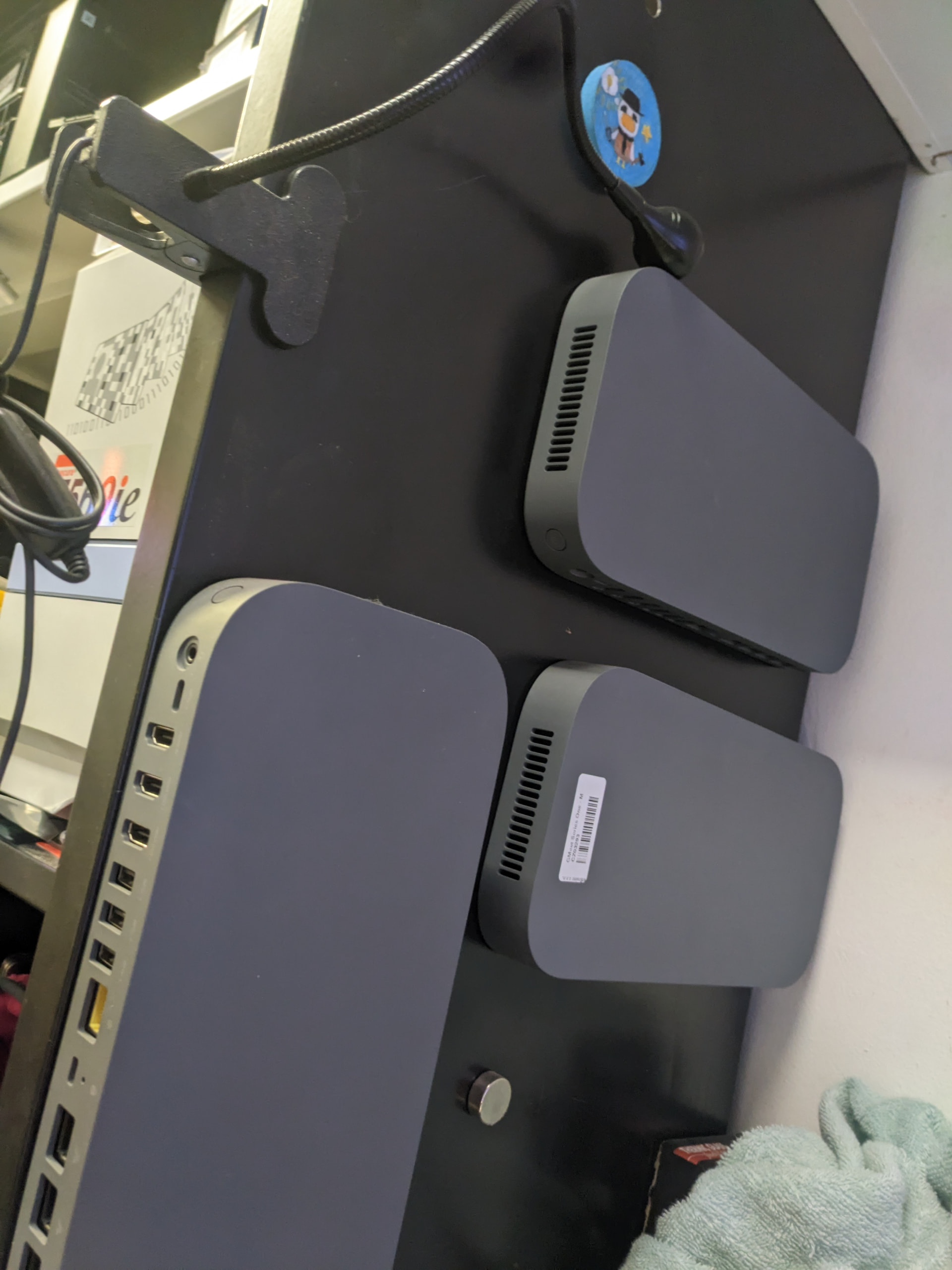

Hello hello :slight_smile:

…i still have 3 of these comps but but is is still not solved. My idea was to use it as TV-PC….but i have got gratis large Avocor One Board 65 (Chromeos-MOONBUGGY) - something like 65” touchscreen AIO.

For me it looks like is needed to be present both - 19V and 54V….19V for run PC and 54V for another connected devices…but on this device is it harder because it really needs 54V detected - not for power on pc - just for power on check.

Here is my old question on Badcaps:

PXL_20260909_200143128.MV
PXL_20260909_200143128.MV1920×2560 419 KB

4

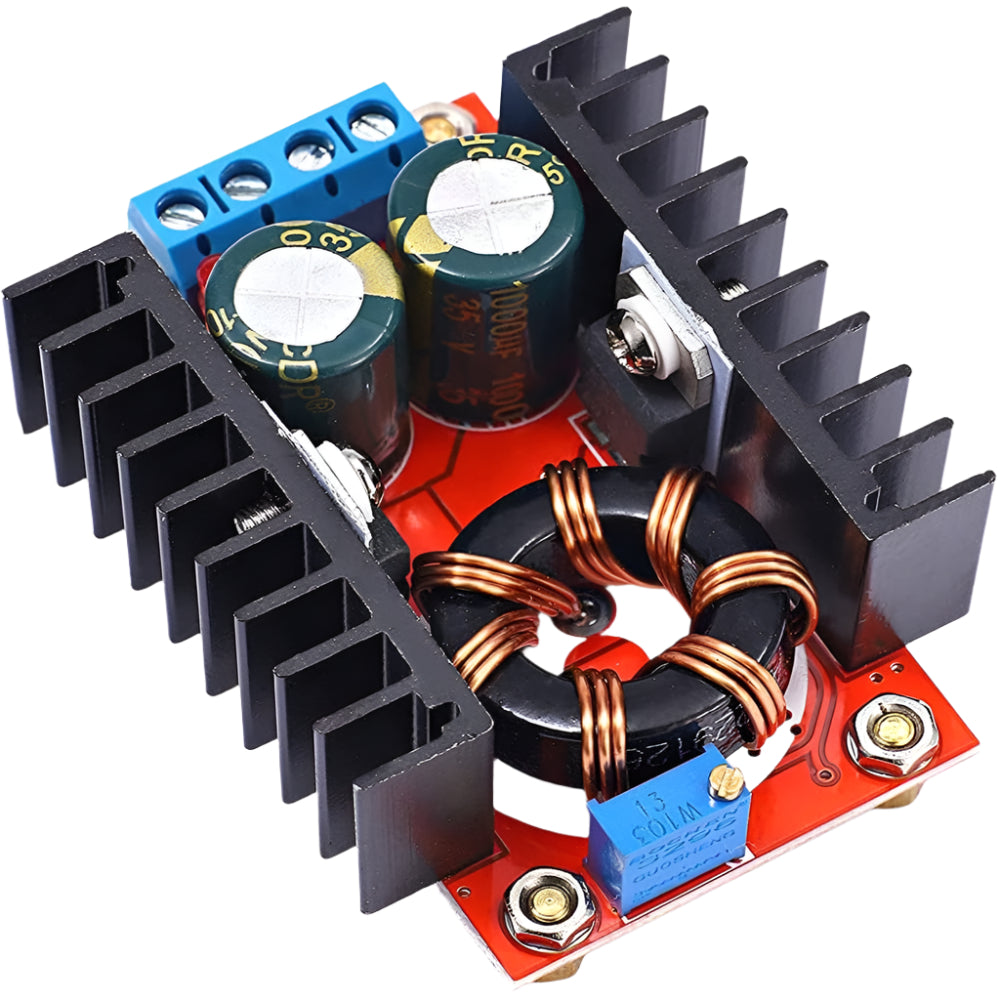

Use a UC3843 or similar step up converter.

dc-dc-constant-voltage-constant-current-dc-step-up-step-down-module-150w_1366x
dc-dc-constant-voltage-constant-current-dc-step-up-step-down-module-150w_1366x1000×1000 168 KB

5

Heh yess thats good idea. I will test it within few days :slight_smile:

6

Hey

I did recieved my unit.

And ive tried with only 19v it DOES start!

However maybe you need to make sure it is 19V adaptor /psu with 4.74A output (90w). I did tried with lower amps, it is struggling to turned on.

Now: ive Successfully flashed the spi chip with jumper wire.

7

where are you finding these cheap? I wouldn’t mind picking one up to play with

8

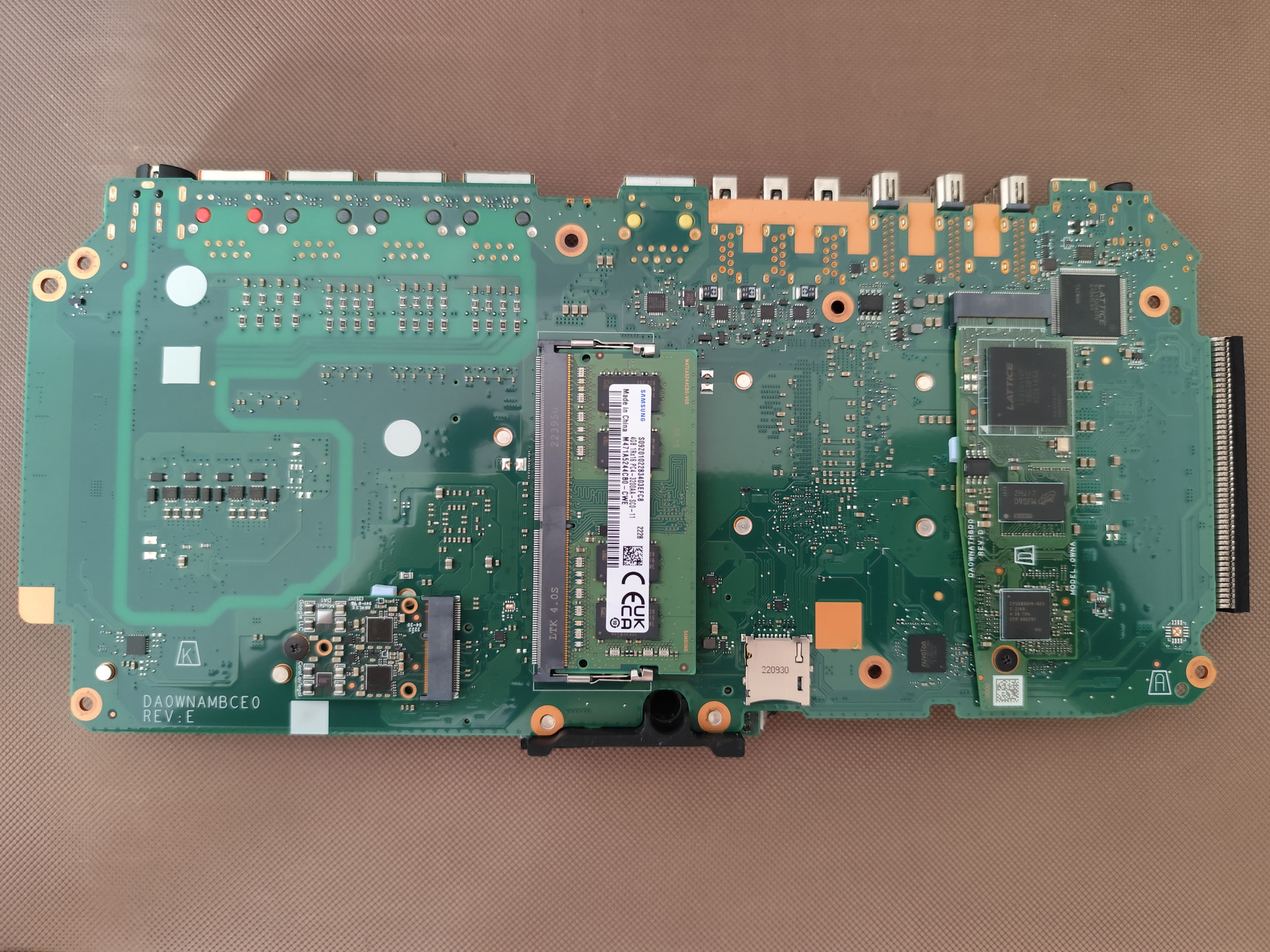

I’m from far far away, Indonesia,

Got it from local marketplace listed as Barebone system without PSU.
Somehow i got a free 4gb stick on the back side. It does include AX201, M.2 E Key Dual edge TPU and I believe a Capture card with E Key interface.

Its dirt cheap, currency converted to around 60US$ inc (ship + tax)
So fun to play with.

IMG_20260911_124217
IMG_20260911_1242171920×1440 671 KB

9

Without case? Excellent for modding project.

10

With case…
