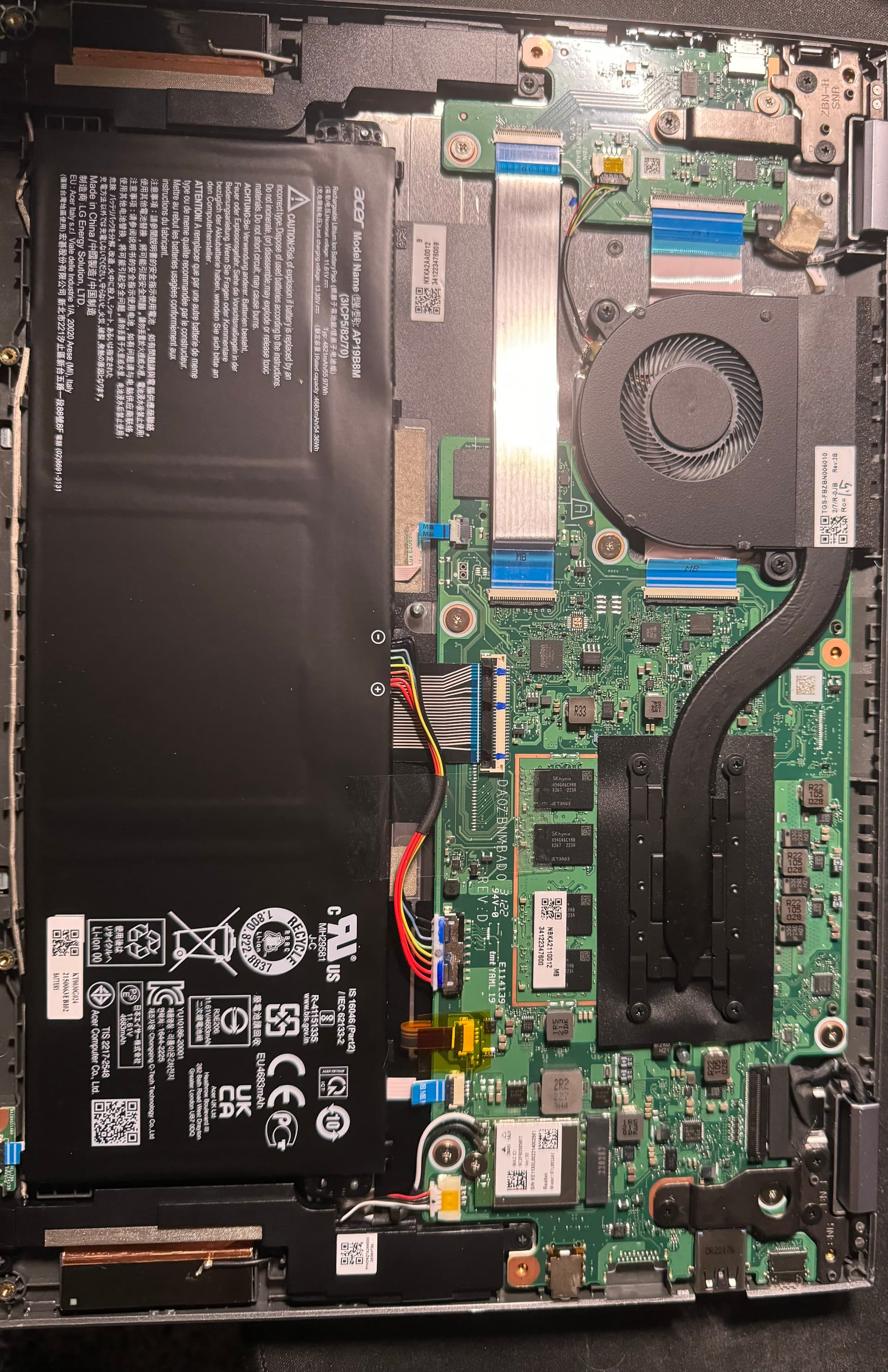

CP514-3H, help finding the jumpers to bridge

[xyypho]

also when bridging the connection does it need to be soldered or can I just short the connection.

[Catbirby]

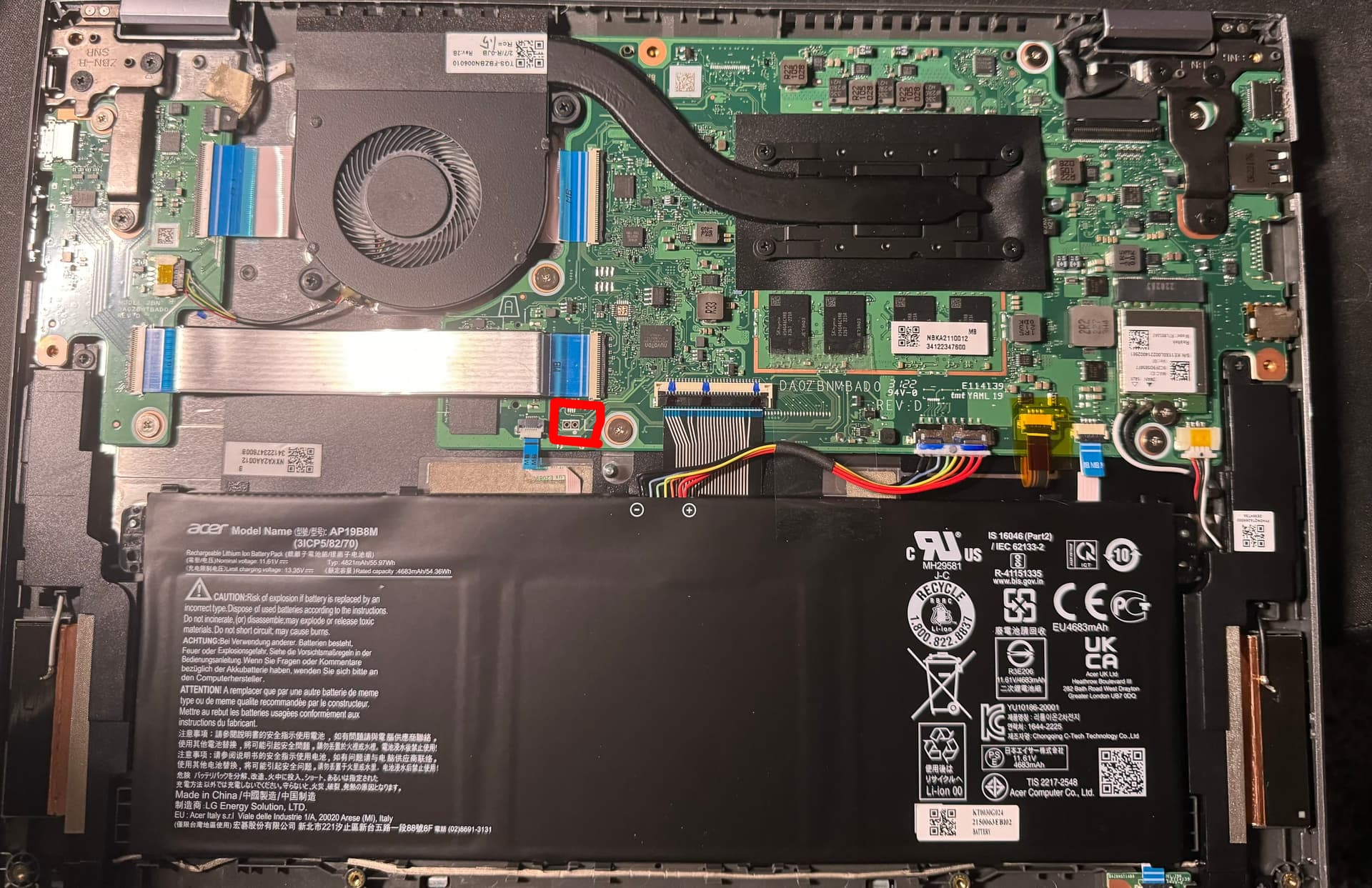

I believe this is the jumper for your device (Circled in red)

You only need to short the connection long enough for firmware write-protect to be turned off.

[xyypho]

thanks
