Hello,
I have a problem with my CP514-1W.
I tried installing the UEFI the way presented in the step by step guide; and now my device is dead.
I tried reflashing the UEFI, using Unbricking guide. Flashing was successful, still nothing.
Did Disabling Write Protect / Using a SuzyQable / Step 2, on my host machine; then re-flashed. Still nothing. Although flashrom said Warning: Chip content is identical to the requested image.
At this point I am kind of out of ideas.
Thanks for help,
Maciej Błędkowski
Now, I have also tried doing it from firmware backup, and I get
Using clock_gettime for delay loops (clk_id: 1, resolution: 1ns).
Region requested (with -i "SI_BIOS"), but no layout data is available.
you’re using the incorrect command to reflash the backup on an AMD device:
It seems there is an issue with the latest release and some Picasso boards, but I’m unable to determine what it is. I assume you tried a hard reset (Refresh+Power) after reflashing the UEFI firmware?
For flashing the UEFI, I used sudo flashrom -p raiden_debug_spi:target=AP -w <file> command.
For flashing the the backup, I used sudo flashrom -p raiden_debug_spi:target=AP -i SI_BIOS -w <file>.
So exactly the commands listed in the docs of chrultrabook.
I have tried the hard reset; from what I understand it is Volume Up and Power in this model.

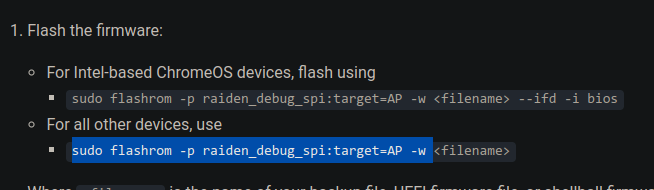

then they are wrong, which is why I linked you to my site
Refresh+Power
The command on your website is exactly the same.
I have managed to restore system with sudo flashrom -p raiden_debug_spi:target=AP (without -i SI_BIOS)
I have tried installing coreboot again, with vpd.bin applied, and nothing. I believe something is wrong with this build of coreboot, although I might be wrong.
the -i SI_BIOS is not correct, nor is it present on my site. So no, it’s not the same
Seems some PCO devices are not working properly with the latest update, no idea why, need someone with a SuzyQ to help debug since my devices work perfectly with it
You can tell me what should I run, and I am going to sent you the output
I have also tried version 20240223, and it also does not work.
EDIT: Oh wait, it works
so what caused you to think the older version didn’t work?
I had a black screen for a long time, i tried pressing power + refresh + esc; and it magically booted.
Now my problem is, that coreboot does not detect the emmc, so I cannot boot, after installing fedora linux
because that older version doesn’t have the PCO eMMC fix
Tell me, how can I help you
output from /dev/ttyUSB2; on current coreboot build
--- UART initialized after reboot ---
[Image: RO, ezkinil_v2.0.5672-e6474e79cc 2021-07-30 17:22:58 @chromeos-ci-firmware-us-central1-b-x32-0-1er3]
[Reset cause: reset-pin]
[0.005747 KB boot key mask 0]
[0.006016 init buttons]
[0.006255 VB Main]
[0.006464 VB Ping Cr50]
[0.007750 hash start 0x00040000 0x00031a08]
[0.324970 hash done 64c00f51064a51531cdf6444d2153104e3b5804028687343d7a5d27606ab7713]
[0.325095 VB Verifying hash]
[0.343397 VB Received 0xec07]
[0.343728 VB Hash mismatch]
[0.343973 VB Enable USB-PD]
[0.344219 VB Exit]
[0.344421 Inits done]
[0.344710 CBI Reading board info]
[0.346929 Read CBI SSFC : 0x0000]
[0.347607 power_chipset_init: power_signal=0x0]
RTC: 0x000002cc (716.00 s)
[0.350697 found batt:LGC KT0030G024]
[0.404475 Board Version: 4 (0x4)]
[0.404890 SKU ID: 1510080521 (0x5a020009)]
[0.405358 FW Config: 579841 (0x8d901)]
[0.407377 C1 PS8743 detected]
[0.407970 C1: PPC is AOZ1380DI]
[0.410506 BASE GYRO is ICM426XX]
[0.417361 SW 0x01]
[0.418322 hash start 0x00040000 0x00031a08]
[0.418473 PB init-on]
[0.418526 USB charge p0 m0 i0]
[0.418845 USB charge p1 m0 i0]
[0.438300 kblight registered]
[0.438783 C1: PD comm policy enabled]
[0.438875 C0: PD comm policy enabled]
[0.438975 KB init state: -- -- -- -- -- -- -- -- -- -- -- -- --]
[0.439408 PB task 8 = init-on]
Console is enabled; type HELP for help.
> [0.442277 C1: TCPC init ready]
[0.442394 C0: TCPC init ready]
[0.442794 C1: Applying CC Open!]
[0.468466 [0.468578 C1: ErrorRecovery]
C0: Applying CC Open!]
[0.469841 mux config:0, port:1, rv:1]
[0.470232 ppc p1 init'd.]
[0.470351 C1: PE_SNK_Startup]
[0.482823 C0: ErrorRecovery]
[0.482940 PB task 8 = init-on, wait 56468]
[0.484336 ppc p0 init'd.]
[0.484445 C0: PE_SNK_Startup]
[0.486854 New charge port: C0]
[0.487346 Ramp reset: st1]
[0.487408 Ramp p0 st1 500mA 0mA]
[0.487500 CL: p0 s9 i500 v5000]
[0.539642 PB task 8 = init-on]
RTC: 0x000002cc (716.00 s)
[0.541551 power state 4 = G3->S5, in 0x0000]
[0.543235 PB PCH pwrbtn=LOW]
[0.549357 Exit SOC G3]
RTC: 0x000002cc (716.00 s)
[0.549451 power state 1 = S5, in 0x0008]
[0.549520 Pass through EC_PWROK_OD: 1]
[0.623405 PB task 9 = recovery, wait 199999]
[0.623603 power state 1 = S5, in 0x000b]
RTC: 0x000002cc (716.00 s)
[0.623719 power state 5 = S5->S3, in 0x000b]
i2c 3 recovery! error code is 13, current state is 0
[0.624873 PD:S5->S3]
RTC: 0x000002cc (716.00 s)
[0.625005 power state 2 = S3, in 0x000b]
RTC: 0x000002cc (716.00 s)
[0.625120 power state 6 = S3->S0, in 0x000b]
[0.628746 PD:S3->S0]
[0.628805 USB charge p0 m2 i0]
[0.629417 USB charge p1 m2 i0]
[0.630016 Setting fan RPM to 4600]
[0.630082 Charger=307K (34C) SOC=303K (30C) ]
RTC: 0x000002cc (716.00 s)
[0.631290 power state 3 = S0, in 0x000b]
[0.633241 power state 3 = S0, in 0x000f]
[0.634414 Pass through S0_PWROK_OD: 1]
[0.635732 Lid Accel: MS Done Init type:0x0 range:2]
[0.636490 Lid Accel ODR: 10000 - roundup 1 from config 1 [AP 0]]
[0.640903 Base Accel: MS Done Init type:0x0 range:2]
[0.662917 Base Accel ODR: 10000 - roundup 1 from config 1 [AP 0]]
[0.663854 Base Gyro: MS Done Init type:0x1 range:1000]
[0.711080 C1: Unattached.SNK]
[0.713220 C1: DRPAutoToggle]
[0.724482 C0: Unattached.SNK]
[0.726730 C0: AttachWait.SNK]
[0.755771 C1: LowPowerMode]
[0.823594 PB task 9 = recovery]
[0.823672 PB PCH pwrbtn=HIGH]
[0.823727 PB task 0 = idle, wait -1]
[0.829638 C0: Debug accessory detected]
[0.829706 C0: Attached.SNK]
[0.830385 Base Gyro ODR: 0 - roundup 0 from config 0 [AP 0]]
[0.830591 New charge port: C0]
[0.831190 C0: PE_SNK_Startup]
[0.832060 C0: PE_SNK_Discovery]
[0.832461 C0: PE_SNK_Wait_for_Capabilities]
[0.834652 Ramp reset: st1]
[0.834730 Ramp p0 st1 1500mA 0mA]
[0.834876 CL: p0 s2 i1500 v5000]
[0.861587 power state 3 = S0, in 0x0008]
[0.861773 Pass through S0_PWROK_OD: 0]
RTC: 0x000002cc (716.00 s)
[0.861938 power state 7 = S0->S3, in 0x0008]
[0.863816 PD:S0->S3]
RTC: 0x000002cc (716.00 s)
[0.864928 power state 2 = S3, in 0x0008]
RTC: 0x000002cc (716.00 s)
[0.865043 power state 8 = S3->S5, in 0x0008]
[0.865183 PD:S3->S5]
[0.865242 USB charge p0 m0 i0]
[0.865703 USB charge p1 m0 i0]
[0.866040 VB hook_shutdown]
[0.866097 VB Ping Cr50]
[0.867505 VB Failed to verify RW (0x6)]
[0.867586 VB show_critical_error]
RTC: 0x000002cc (716.00 s)
[0.867687 power state 1 = S5, in 0x0008]
[0.890718 C1: Exit Low Power Mode]
[0.891662 C1: Unattached.SNK]
[0.893861 C1: LowPowerMode]
[0.996010 C1: TCPC Enter Low Power Mode]
[1.069087 hash done 64c00f51064a51531cdf6444d2153104e3b5804028687343d7a5d27606ab7713]
[1.130273 charge_manager_leave_safe_mode()]
[1.145660 Battery 30% (Display 28.9 %) / 9h:0 to empty]
[1.146277 charge_request(13344mV, 5228mA)]
[1.438339 C0: PE_SNK_Hard_Reset]
[1.439808 C0: PE_SNK_Transition_to_default]
[1.442082 C0 Hard Reset sent]
[[1.450041 C0: TCPC init ready]
1.444693 New charge port: C0]
[1.459703 C1: TCPC init ready]
[1.461555 Ramp reset: st1]
[1.461895 Ramp p0 st1 500mA 0mA]
[1.462440 CL: p0 s9 i500 v5000]
[1.486866 C1: Exit Low Power Mode]
[1.489081 C1: Unattached.SNK]
[1.491375 C1: LowPowerMode]
[1.595043 C1: TCPC Enter Low Power Mode]
[1.626801 pi3usb9201[p0]: sts = 0x40, lim = 500 mA, supplier = 5]
[1.628219 New charge port: C0]
[1.635341 C1: TCPC init ready]
[1.636975 Ramp reset: st1]
[1.637366 Ramp p0 st1 500mA 0mA]
[1.637912 CL: p0 s5 i500 v5000]
[1.662398 C1: Exit Low Power Mode]
[1.664788 C1: Unattached.SNK]
[1.667024 C1: LowPowerMode]
[1.770763 C1: TCPC Enter Low Power Mode]
[2.488512 Ramp p0 st5 500mA 500mA]
[3.099117 New charge port: C0]
[3.104897 C0: PE_[3.106169 C1: TCPC init ready]
SNK_Startup]
[3.108707 C0: PE_SNK_Discovery]
[3.109736 C0: PE_SNK_Wait_for_Capabilities]
[3.113035 Ramp reset: st1]
[3.113820 Ramp p0 st5 1500mA 1500mA]
[3.114411 CL: p0 s2 i1500 v5000]
[3.133150 C1: Exit Low Power Mode]
[3.135362 C1: Unattached.SNK]
[3.137686 C1: LowPowerMode]
[3.241612 C1: TCPC Enter Low Power Mode]
[3.714349 C0: PE_SNK_Hard_Reset]
[3.716074 C0: PE_SNK_Transition_to_default]
[[3.718253 C0 Hard Reset sent]
3.718131 C0: PE_SNK_Startup]
[3.727739 C0: TCPC init ready]
[3.728144 C0: PE_SNK_Discovery]
[3.728586 C0: PE_SNK_Wait_for_Capabilities]
[3.731411 New charge port: C0]
[3.738858 C1: TCPC init ready]
[3.740666 Ramp reset: st1]
[3.741011 Ramp p0 st5 500mA 500mA]
[3.741582 CL: p0 s5 i500 v5000]
[3.765726 C1: Exit Low Power Mode]
[3.768156 C1: Unattached.SNK]
[3.770384 C1: LowPowerMode]
[3.874012 C1: TCPC Enter Low Power Mode]
[4.334054 C0: PE_SNK_Hard_Reset]
[4.335078 C0: PE_SNK_Transition_to_default]
[4.335960 C0: PE_SNK_Startu[4.337024 C0 Hard Reset sent]
p]
[4.345697 C0: TCPC init ready]
[4.346061 C0: PE_SNK_Discovery]
[4.346502 C0: PE_SNK_Wait_for_Capabilities]
[4.523206 pi3usb9201[p0]: sts = 0x40, lim = 500 mA, supplier = 5]
Port 80 writes:
(S3->S0)
04 <--new
[4.951503 C0: PE_SNK_Hard_Reset]
[4.952004 C0: PE_SRC_Disabled]
[5.374594 New charge port: C0]
[5.382019 C1: TCPC init ready]
[5.384059 Ramp reset: st1]
[5.384786 Ramp p0 st1 1500mA 500mA]
[5.385369 CL: p0 s2 i1500 v5000]
[5.409347 C1: Exit Low Power Mode]
[5.411516 C1: Unattached.SNK]
[5.413803 C1: LowPowerMode]
[5.517539 C1: TCPC Enter Low Power Mode]
[5.850863 power state 1 = S5, in 0x000b]
RTC: 0x000002d1 (721.00 s)
[5.852300 power state 5 = S5->S3, in 0x000b]
[5.853465 PD:S5->S3]
RTC: 0x000002d1 (721.00 s)
[5.854108 power state 2 = S3, in 0x000b]
RTC: 0x000002d1 (721.00 s)
[5.854768 power state 6 = S3->S0, in 0x000b]
[5.857357 PD:S3->S0]
[5.857663 USB charge p0 m2 i0]
[5.859134 USB charge p1 m2 i0]
[5.860695 Setting fan RPM to 4600]
[5.861079 Charger=307K (34C) SOC=303K (30C) ]
RTC: 0x000002d1 (721.00 s)
[5.864829 power state 3 = S0, in 0x000f]
[5.866427 Pass through S0_PWROK_OD: 1]
[5.872385 Lid Accel: MS Done Init type:0x0 range:2]
[5.875385 L[5.875656 Lid Accel Missed 61 data collections at 955818 - rate: 80000]
id Accel ODR: 10000 - roundup 1 from config 1 [AP 0]]
[5.883290 C1: Exit Low Power Mode]
[5.890652 C1: TCPC init ready]
[5.891731 C1: DRPAutoToggle]
[5.893653 Base Accel: MS Done Init type:0x0 range:2]
[5.919065 Base Accel ODR: 10000 - roundup 1 from config 1 [AP 0]]
[5.922820 Base Gyro: MS Done Init type:0x1 range:1000]
[5.937339 C1: LowPowerMode]
[6.043364 C1: TCPC Enter Low Power Mode]
[6.081936 Base Gyro ODR: 0 - roundup 0 from config 0 [AP 0]]
[6.086979 power state 3 = S0, in 0x0008]
[6.087409 Pass through S0_PWROK_OD: 0]
RTC: 0x000002d1 (721.00 s)
[6.088026 power state 7 = S0->S3, in 0x0008]
[6.089932 PD:S0->S3]
RTC: 0x000002d1 (721.00 s)
[6.092413 power state 2 = S3, in 0x0008]
RTC: 0x000002d1 (721.00 s)
[6.093074 power state 8 = S3->S5, in 0x0008]
[6.094189 PD:S3->S5]
[6.094617 USB charge p0 m0 i0]
[6.095550 USB charge p1 m0 i0]
[6.096469 VB hook_shutdown]
[6.096788 VB Ping Cr50]
[6.098298 hash start 0x00040000 0x00031a08]
[6.119420 C1: Exit Low Power Mode]
[6.122768 C1: TCPC init ready]
[6.123671 C1: Unattached.SNK]
[6.125794 C1: LowPowerMode]
[6.227901 C1: TCPC Enter Low Power Mode]
[6.430930 hash done 64c00f51064a51531cdf6444d2153104e3b5804028687343d7a5d27606ab7713]
[6.431066 VB Verifying hash]
[6.448564 VB Received 0xec07]
[6.448978 VB Hash mismatch]
[6.449262 VB Enable USB-PD]
RTC: 0x000002d2 (722.00 s)
[6.449798 power state 1 = S5, in 0x0008]
[6.453697 Lid Accel ODR: 10000 - roundup 1 from config 2 [AP 0]]
[7.385924 Ramp p0 st5 1500mA 1500mA]
Port 80 writes:
(S3->S0)
04
(S3->S0)
04 <--new
[11.075689 power state 1 = S5, in 0x000b]
RTC: 0x000002d6 (726.00 s)
[11.076619 power state 5 = S5->S3, in 0x000b]
[11.077714 PD:S5->S3]
RTC: 0x000002d6 (726.00 s)
[11.078367 power state 2 = S3, in 0x000b]
RTC: 0x000002d6 (726.00 s)
[11.079037 power state 6 = S3->S0, in 0x000b]
[11.081870 PD:S3->S0]
[11.082192 USB charge p0 m2 i0]
[11.083702 USB charge p1 m2 i0]
[11.085336 Setting fan RPM to 4600]
[11.085761 Charger=307K (34C) SOC=303K (30C) ]
RTC: 0x000002d6 (726.00 s)
[11.089659 power state 3 = S0, in 0x000f]
[11.091259 Pass through S0_PWROK_OD: 1]
[11.096662 Lid Accel: MS Done Init type:0x0 range:2]
[11.099646 [11.099915 Lid Accel Missed 60 data collections at 6250637 - rate: 80000]
Lid Accel ODR: 10000 - roundup 1 from config 1 [AP 0]]
[11.102625 C1: Exit Low Power Mode]
[11.110219 C1: TCPC init ready]
[11.111332 C1: DRPAutoToggle]
[11.117060 Base Accel: MS Done Init type:0x0 range:2]
[11.143147 Base Accel ODR: 10000 - roundup 1 from config 1 [AP 0]]
[11.146322 Base Gyro: MS Done Init type:0x1 range:1000]
[11.156957 C1: LowPowerMode]
[11.263104 C1: TCPC Enter Low Power Mode]
[11.306049 Base Gyro ODR: 0 - roundup 0 from config 0 [AP 0]]
[11.311113 power state 3 = S0, in 0x0008]
[11.311550 Pass through S0_PWROK_OD: 0]
RTC: 0x000002d7 (727.00 s)
[11.312178 power state 7 = S0->S3, in 0x0008]
[11.314212 PD:S0->S3]
RTC: 0x000002d7 (727.00 s)
[11.316519 power state 2 = S3, in 0x0008]
RTC: 0x000002d7 (727.00 s)
[11.317190 power state 8 = S3->S5, in 0x0008]
[11.318231 PD:S3->S5]
[11.318666 USB charge p0 m0 i0]
[11.319609 USB charge p1 m0 i0]
[11.320540 VB hook_shutdown]
[11.320868 VB Ping Cr50]
[11.322403 hash start 0x00040000 0x00031a08]
[11.343417 C1: Exit Low Power Mode]
[11.346766 C1: TCPC init ready]
[11.347675 C1: Unattached.SNK]
[11.349789 C1: LowPowerMode]
[11.451861 C1: TCPC Enter Low Power Mode]
[11.655118 hash done 64c00f51064a51531cdf6444d2153104e3b5804028687343d7a5d27606ab7713]
[11.655256 VB Verifying hash]
[11.672924 VB Received 0xec07]
[11.673347 VB Hash mismatch]
[11.673642 VB Enable USB-PD]
RTC: 0x000002d7 (727.00 s)
[11.674188 power state 1 = S5, in 0x0008]
[11.679038 Lid Accel ODR: 10000 - roundup 1 from config 2 [AP 0]]
Port 80 writes:
(S3->S0)
04
(S3->S0)
04
(S3->S0)
04 <--new
[16.299593 power state 1 = S5, in 0x000b]
RTC: 0x000002dc (732.00 s)
[16.300526 power state 5 = S5->S3, in 0x000b]
[16.301619 PD:S5->S3]
RTC: 0x000002dc (732.00 s)
[16.302273 power state 2 = S3, in 0x000b]
RTC: 0x000002dc (732.00 s)
[16.302942 power state 6 = S3->S0, in 0x000b]
[16.305776 PD:S3->S0]
[16.306102 USB charge p0 m2 i0]
[16.307620 USB charge p1 m2 i0]
[16.309258 Setting fan RPM to 4600]
[16.309654 Charger=307K (34C) SOC=303K (30C) ]
RTC: 0x000002dc (732.00 s)
[16.313552 power state 3 = S0, in 0x000f]
[16.315153 Pass through S0_PWROK_OD: 1]
[16.320564 Lid Accel: MS Done Init type:0x0 range:2]
[16.323543 [16.323810 Lid Accel Missed 60 data collections at 11474724 - rate: 80000]
Lid Accel ODR: 10000 - roundup 1 from config 1 [AP 0]]
[16.326470 C1: Exit Low Power Mode]
[16.334115 C1: TCPC init ready]
[16.335231 C1: DRPAutoToggle]
[16.340954 Base Accel: MS Done Init type:0x0 range:2]
[16.367029 Base Accel ODR: 10000 - roundup 1 from config 1 [AP 0]]
[16.370204 Base Gyro: MS Done Init type:0x1 range:1000]
[16.380845 C1: LowPowerMode]
[16.486954 C1: TCPC Enter Low Power Mode]
[16.529918 Base Gyro ODR: 0 - roundup 0 from config 0 [AP 0]]
[16.534960 power state 3 = S0, in 0x0008]
[16.535398 Pass through S0_PWROK_OD: 0]
RTC: 0x000002dc (732.00 s)
[16.536025 power state 7 = S0->S3, in 0x0008]
[16.538059 PD:S0->S3]
RTC: 0x000002dc (732.00 s)
[16.540385 power state 2 = S3, in 0x0008]
RTC: 0x000002dc (732.00 s)
[16.541056 power state 8 = S3->S5, in 0x0008]
[16.542096 PD:S3->S5]
[16.542531 USB charge p0 m0 i0]
[16.543473 USB charge p1 m0 i0]
[16.544404 VB hook_shutdown]
[16.544731 VB Ping Cr50]
[16.546267 hash start 0x00040000 0x00031a08]
[16.567310 C1: Exit Low Power Mode]
[16.570690 C1: TCPC init ready]
[16.571598 C1: Unattached.SNK]
[16.573734 C1: LowPowerMode]
[16.675776 C1: TCPC Enter Low Power Mode]
[16.878929 hash done 64c00f51064a51531cdf6444d2153104e3b5804028687343d7a5d27606ab7713]
[16.879062 VB Verifying hash]
[16.896739 VB Received 0xec07]
[16.897161 VB Hash mismatch]
[16.897458 VB Enable USB-PD]
RTC: 0x000002dc (732.00 s)
[16.898003 power state 1 = S5, in 0x0008]
[16.902768 Lid Accel ODR: 10000 - roundup 1 from config 2 [AP 0]]
[17.980181 Battery 30% (Display 29.0 %) / 8h:50 to full]
Port 80 writes:
(S3->S0)
04
(S3->S0)
04
(S3->S0)
04
(S3->S0)
04 <--new
[21.523915 power state 1 = S5, in 0x000b]
RTC: 0x000002e1 (737.00 s)
[21.524845 power state 5 = S5->S3, in 0x000b]
[21.525939 PD:S5->S3]
RTC: 0x000002e1 (737.00 s)
[21.526593 power state 2 = S3, in 0x000b]
RTC: 0x000002e1 (737.00 s)
[21.527262 power state 6 = S3->S0, in 0x000b]
[21.530093 PD:S3->S0]
[21.530416 USB charge p0 m2 i0]
[21.531928 USB charge p1 m2 i0]
[21.533578 Setting fan RPM to 4600]
[21.534001 Charger=307K (34C) SOC=303K (30C) ]
RTC: 0x000002e1 (737.00 s)
[21.537979 power state 3 = S0, in 0x000f]
[21.539575 Pass through S0_PWROK_OD: 1]
[21.544905 Lid Accel: MS Done Init type:0x0 range:2]
[21.547875 [21.548143 Lid Accel Missed 60 data collections at 16698569 - rate: 80000]
Lid Accel ODR: 10000 - roundup 1 from config 1 [AP 0]]
[21.550679 C1: Exit Low Power Mode]
[21.558297 C1: TCPC init ready]
[21.559420 C1: DRPAutoToggle]
[21.565164 Base Accel: MS Done Init type:0x0 range:2]
[21.591235 Base Accel ODR: 10000 - roundup 1 from config 1 [AP 0]]
[21.594395 Base Gyro: MS Done Init type:0x1 range:1000]
[21.604909 C1: LowPowerMode]
[21.710536 C1: TCPC Enter Low Power Mode]
[21.754992 Base Gyro ODR: 0 - roundup 0 from config 0 [AP 0]]
[21.760058 power state 3 = S0, in 0x0008]
[21.760495 Pass through S0_PWROK_OD: 0]
RTC: 0x000002e1 (737.00 s)
[21.761122 power state 7 = S0->S3, in 0x0008]
[21.763157 PD:S0->S3]
RTC: 0x000002e1 (737.00 s)
[21.765487 power state 2 = S3, in 0x0008]
RTC: 0x000002e1 (737.00 s)
[21.766158 power state 8 = S3->S5, in 0x0008]
[21.767281 PD:S3->S5]
[21.767717 USB charge p0 m0 i0]
[21.768658 USB charge p1 m0 i0]
[21.769585 VB hook_shutdown]
[21.769915 VB Ping Cr50]
[21.771451 hash start 0x00040000 0x00031a08]
[21.792498 C1: Exit Low Power Mode]
[21.795880 C1: TCPC init ready]
[21.796789 C1: Unattached.SNK]
[21.798931 C1: LowPowerMode]
[21.901027 C1: TCPC Enter Low Power Mode]
[22.104089 hash done 64c00f51064a51531cdf6444d2153104e3b5804028687343d7a5d27606ab7713]
[22.104227 VB Verifying hash]
[22.121900 VB Received 0xec07]
[22.122323 VB Hash mismatch]
[22.122620 VB Enable USB-PD]
RTC: 0x000002e2 (738.00 s)
[22.123165 power state 1 = S5, in 0x0008]
[22.127710 Lid Accel ODR: 10000 - roundup 1 from config 2 [AP 0]]
Port 80 writes:
(S3->S0)
04
(S3->S0)
04
(S3->S0)
04
(S3->S0)
04
(S3->S0)
04 <--new
[26.748437 power state 1 = S5, in 0x000b]
RTC: 0x000002e6 (742.00 s)
[26.749165 power state 5 = S5->S3, in 0x000b]
[26.750259 PD:S5->S3]
RTC: 0x000002e6 (742.00 s)
[26.750913 power state 2 = S3, in 0x000b]
RTC: 0x000002e6 (742.00 s)
[26.751665 power state 6 = S3->S0, in 0x000b]
[26.754427 PD:S3->S0]
[26.754750 USB charge p0 m2 i0]
[26.756289 USB charge p1 m2 i0]
[26.757822 Setting fan RPM to 4600]
[26.758260 Charger=307K (34C) SOC=303K (30C) ]
RTC: 0x000002e6 (742.00 s)
[26.762107 power state 3 = S0, in 0x000f]
[26.763708 Pass through S0_PWROK_OD: 1]
[26.769131 Lid Accel: MS Done Init type:0x0 range:2]
[26.772032 [26.772300 Lid Accel Missed 60 data collections at 21923740 - rate: 80000]
Lid Accel ODR: 10000 - roundup 1 from config 1 [AP 0]]
[26.775116 C1: Exit Low Power Mode]
[26.782725 C1: TCPC init ready]
[26.783925 C1: DRPAutoToggle]
[26.789568 Base Accel: MS Done Init type:0x0 range:2]
[26.815644 Base Accel ODR: 10000 - roundup 1 from config 1 [AP 0]]
[26.818797 Base Gyro: MS Done Init type:0x1 range:1000]
[26.829290 C1: LowPowerMode]
[26.934844 C1: TCPC Enter Low Power Mode]
[26.978573 Base Gyro ODR: 0 - roundup 0 from config 0 [AP 0]]
[26.983628 power state 3 = S0, in 0x0008]
[26.984066 Pass through S0_PWROK_OD: 0]
RTC: 0x000002e6 (742.00 s)
[26.984692 power state 7 = S0->S3, in 0x0008]
[26.986726 PD:S0->S3]
RTC: 0x000002e6 (742.00 s)
[26.989086 power state 2 = S3, in 0x0008]
RTC: 0x000002e6 (742.00 s)
[26.989756 power state 8 = S3->S5, in 0x0008]
[26.990798 PD:S3->S5]
[26.991237 USB charge p0 m0 i0]
[26.992170 USB charge p1 m0 i0]
[26.993098 VB hook_shutdown]
[26.993426 VB Ping Cr50]
[26.994938 hash start 0x00040000 0x00031a08]
[27.016022 C1: Exit Low Power Mode]
[27.019369 C1: TCPC init ready]
[27.020278 C1: Unattached.SNK]
[27.022407 C1: LowPowerMode]
[27.124488 C1: TCPC Enter Low Power Mode]
[27.327615 hash done 64c00f51064a51531cdf6444d2153104e3b5804028687343d7a5d27606ab7713]
[27.327753 VB Verifying hash]
[27.345419 VB Received 0xec07]
[27.345842 VB Hash mismatch]
[27.346139 VB Enable USB-PD]
RTC: 0x000002e7 (743.00 s)
[27.346684 power state 1 = S5, in 0x0008]
[27.351489 Lid Accel ODR: 10000 - roundup 1 from config 2 [AP 0]]
Port 80 writes:
(S3->S0)
04
(S3->S0)
04
(S3->S0)
04
(S3->S0)
04
(S3->S0)
04
(S3->S0)
04 <--new
[31.971929 power state 1 = S5, in 0x000b]
RTC: 0x000002eb (747.00 s)
[31.973497 power state 5 = S5->S3, in 0x000b]
[31.974594 PD:S5->S3]
RTC: 0x000002eb (747.00 s)
[31.975250 power state 2 = S3, in 0x000b]
RTC: 0x000002eb (747.00 s)
[31.975919 power state 6 = S3->S0, in 0x000b]
[31.978528 PD:S3->S0]
[31.978844 USB charge p0 m2 i0]
[31.980371 USB charge p1 m2 i0]
[31.981965 Setting fan RPM to 4600]
[31.982360 Charger=307K (34C) SOC=303K (30C) ]
RTC: 0x000002eb (747.00 s)
[31.986120 power state 3 = S0, in 0x000f]
[31.987713 Pass through S0_PWROK_OD: 1]
[31.993594 Lid Accel: MS Done Init type:0x0 range:2]
[31.996566 L[d Accel ODR: 10000 - roundup 1 from config 1 [AP 0]]
[32.004414 C1: Exit Low Power Mode]
[32.011846 C1: TCPC init ready]
[32.012895 C1: DRPAutoToggle]
[32.015245 Base Accel: MS Done Init type:0x0 range:2]
[32.040573 Base Accel ODR: 10000 - roundup 1 from config 1 [AP 0]]
[32.044597 Base Gyro: MS Done Init type:0x1 range:1000]
[32.058376 C1: LowPowerMode]
[32.164543 C1: TCPC Enter Low Power Mode]
[32.205285 Base Gyro ODR: 0 - roundup 0 from config 0 [AP 0]]
[32.210288 power state 3 = S0, in 0x0008]
[32.210730 Pass through S0_PWROK_OD: 0]
RTC: 0x000002ec (748.00 s)
[32.211356 power state 7 = S0->S3, in 0x0008]
[32.214039 PD:S0->S3]
RTC: 0x000002ec (748.00 s)
[32.216436 power state 2 = S3, in 0x0008]
RTC: 0x000002ec (748.00 s)
[32.217189 power state 8 = S3->S5, in 0x0008]
[32.218230 PD:S3->S5]
[32.218666 USB charge p0 m0 i0]
[32.219608 USB charge p1 m0 i0]
[32.220538 VB hook_shutdown]
[32.220866 VB Ping Cr50]
[32.222399 hash start 0x00040000 0x00031a08]
[32.243469 C1: Exit Low Power Mode]
[32.246849 C1: TCPC init ready]
[32.247757 C1: Unattached.SNK]
[32.249876 C1: LowPowerMode]
[32.351966 C1: TCPC Enter Low Power Mode]
[32.555117 hash done 64c00f51064a51531cdf6444d2153104e3b5804028687343d7a5d27606ab7713]
[32.555249 VB Verifying hash]
[32.572903 VB Received 0xec07]
[32.573326 VB Hash mismatch]
[32.573623 VB Enable USB-PD]
RTC: 0x000002ec (748.00 s)
[32.574169 power state 1 = S5, in 0x0008]
[32.578757 Lid Accel ODR: 10000 - roundup 1 from config 2 [AP 0]]
Port 80 writes:
(S3->S0)
04
(S3->S0)
04
(S3->S0)
04
(S3->S0)
04
(S3->S0)
04
(S3->S0)
04
(S3->S0)
04 <--new
[37.198116 power state 1 = S5, in 0x000b]
RTC: 0x000002f1 (753.00 s)
[37.199528 power state 5 = S5->S3, in 0x000b]
[37.200694 PD:S5->S3]
RTC: 0x000002f1 (753.00 s)
[37.201347 power state 2 = S3, in 0x000b]
RTC: 0x000002f1 (753.00 s)
[37.202016 power state 6 = S3->S0, in 0x000b]
[37.204627 PD:S3->S0]
[37.204945 USB charge p0 m2 i0]
[37.206474 USB charge p1 m2 i0]
[37.208037 Setting fan RPM to 4600]
[37.208431 Charger=307K (34C) SOC=303K (30C) ]
RTC: 0x000002f1 (753.00 s)
[37.212216 power state 3 = S0, in 0x000f]
[37.213815 Pass through S0_PWROK_OD: 1]
[37.219698 Lid Accel: MS Done Init type:0x0 range:2]
[37.222694 Lid Accel ODR: 10000 - roundup 1 from config 1 [AP 0]]
[37.230542 C1: Exit Low Power Mode]
[37.237860 C1: TCPC init ready]
[37.238906 C1: DRPAutoToggle]
[37.241345 Base Accel: MS Done Init type:0x0 range:2]
[37.266783 Base Accel ODR: 10000 - roundup 1 from config 1 [AP 0]]
[37.270734 Base Gyro: MS Done Init type:0x1 range:1000]
[37.284436 C1: LowPowerMode]
[37.389993 C1: TCPC Enter Low Power Mode]
[37.430034 Base Gyro ODR: 0 - roundup 0 from config 0 [AP 0]]
[37.435076 power state 3 = S0, in 0x0008]
[37.435514 Pass through S0_PWROK_OD: 0]
RTC: 0x000002f1 (753.00 s)
[37.436142 power state 7 = S0->S3, in 0x0008]
[37.438140 PD:S0->S3]
RTC: 0x000002f1 (753.00 s)
[37.440552 power state 2 = S3, in 0x0008]
RTC: 0x000002f1 (753.00 s)
[37.441224 power state 8 = S3->S5, in 0x0008]
[37.442347 PD:S3->S5]
[37.442784 USB charge p0 m0 i0]
[37.443725 USB charge p1 m0 i0]
[37.444653 VB hook_shutdown]
[37.444982 VB Ping Cr50]
[37.446484 hash start 0x00040000 0x00031a08]
[37.467583 C1: Exit Low Power Mode]
[37.470961 C1: TCPC init ready]
[37.471868 C1: Unattached.SNK]
[37.473993 C1: LowPowerMode]
[37.576093 C1: TCPC Enter Low Power Mode]
[37.779148 hash done 64c00f51064a51531cdf6444d2153104e3b5804028687343d7a5d27606ab7713]
[37.779286 VB Verifying hash]
[37.796966 VB Received 0xec07]
[37.797391 VB Hash mismatch]
[37.797686 VB Enable USB-PD]
RTC: 0x000002f1 (753.00 s)
[37.798232 power state 1 = S5, in 0x0008]
[37.802934 Lid Accel ODR: 10000 - roundup 1 from config 2 [AP 0]]
output from /dev/ttyUSB0
[142.532695 AP UART on]
[142.564189 deferred_tpm_rst_isr]
[142.565742 AP on]
[142.566795 tpm_reset_request(0, 0)]
[142.568088 tpm_reset_now(0)]
[142.573139 tpm_init]
[142.575386 tpm_manufactured: manufactured]
[142.581634 tpm_reset_now: done]
[142.583400 CCD state: UARTAP+TX UARTEC USBEC]
[142.637496 PinWeaver: Loading Tree!]
[142.700523 Skipping commit]
[142.751495 tpm_rst_asserted]
[142.767272 CCD state: UARTEC+TX USBEC]
[142.771205 CCD state: UARTEC USBEC]
[142.804317 AP UART off]
[143.105274 CCD state: UARTEC+TX USBEC]
[143.122394 CCD state: UARTEC USBEC]
[145.583263 Committing NVMEM changes.]
[145.752326 AP off]
[147.809616 AP UART on]
[147.841331 deferred_tpm_rst_isr]
[147.842842 AP on]
[147.843803 tpm_reset_request(0, 0)]
[147.845153 tpm_reset_now(0)]
[147.850135 tpm_init]
[147.852436 tpm_manufactured: manufactured]
[147.858814 tpm_reset_now: done]
[147.860588 CCD state: UARTAP+TX UARTEC USBEC]
[147.914657 PinWeaver: Loading Tree!]
[147.977912 Skipping commit]
[148.028759 tpm_rst_asserted]
[148.044502 CCD state: UARTEC+TX USBEC]
[148.048572 CCD state: UARTEC USBEC]
[148.081657 AP UART off]
[148.382568 CCD state: UARTEC+TX USBEC]
[148.399650 CCD state: UARTEC USBEC]
[150.860450 Committing NVMEM changes.]
[151.029586 AP off]
[153.086906 AP UART on]
[153.119029 deferred_tpm_rst_isr]
[153.120559 AP on]
[153.121566 tpm_reset_request(0, 0)]
[153.123001 tpm_reset_now(0)]
[153.127933 tpm_init]
[153.130210 tpm_manufactured: manufactured]
[153.136508 tpm_reset_now: done]
[153.138286 CCD state: UARTAP+TX UARTEC USBEC]
[153.192317 PinWeaver: Loading Tree!]
[153.256050 Skipping commit]
[153.307811 tpm_rst_asserted]
[153.323905 CCD state: UARTEC+TX USBEC]
[153.327552 CCD state: UARTEC USBEC]
[153.360626 AP UART off]
[153.661907 CCD state: UARTEC+TX USBEC]
[153.678997 CCD state: UARTEC USBEC]
[156.138126 Committing NVMEM changes.]
[156.308647 AP off]
[158.365859 AP UART on]
[158.398094 deferred_tpm_rst_isr]
[158.399650 AP on]
[158.400684 tpm_reset_request(0, 0)]
[158.401985 tpm_reset_now(0)]
[158.406944 tpm_init]
[158.409309 tpm_manufactured: manufactured]
[158.415561 tpm_reset_now: done]
[158.417362 CCD state: UARTAP+TX UARTEC USBEC]
[158.471427 PinWeaver: Loading Tree!]
[158.535682 Skipping commit]
[158.585391 tpm_rst_asserted]
[158.601329 CCD state: UARTEC+TX USBEC]
[158.606338 CCD state: UARTEC USBEC]
[158.639404 AP UART off]
[158.939250 CCD state: UARTEC+TX USBEC]
[158.956260 CCD state: UARTEC USBEC]
[161.417194 Committing NVMEM changes.]
[161.586219 AP off]
[163.643451 AP UART on]
[163.675739 deferred_tpm_rst_isr]
[163.677345 AP on]
[163.678386 tpm_reset_request(0, 0)]
[163.679695 tpm_reset_now(0)]
[163.684825 tpm_init]
[163.687202 tpm_manufactured: manufactured]
[163.693191 tpm_reset_now: done]
[163.694950 CCD state: UARTAP+TX UARTEC USBEC]
[163.749061 PinWeaver: Loading Tree!]
[163.813255 Skipping commit]
[163.864513 tpm_rst_asserted]
[163.880771 CCD state: UARTEC+TX USBEC]
[163.886123 CCD state: UARTEC USBEC]
[163.919208 AP UART off]
[164.218463 CCD state: UARTEC+TX USBEC]
[164.235599 CCD state: UARTEC USBEC]
[166.694847 Committing NVMEM changes.]
[166.865360 AP off]
[168.922752 AP UART on]
[168.954456 deferred_tpm_rst_isr]
[168.956283 AP on]
[168.957584 tpm_reset_request(0, 0)]
[168.959251 tpm_reset_now(0)]
[168.965232 tpm_init]
[168.968212 tpm_manufactured: manufactured]
[168.972911 tpm_reset_now: done]
[168.975410 CCD state: UARTAP+TX UARTEC USBEC]
[169.027641 PinWeaver: Loading Tree!]
[169.092498 Skipping commit]
[169.143100 tpm_rst_asserted]
[169.160545 CCD state: UARTEC USBEC]
[169.201461 AP UART off]
[169.497032 CCD state: UARTEC+TX USBEC]
[169.514221 CCD state: UARTEC USBEC]
[171.974838 Committing NVMEM changes.]
[172.143913 AP off]
[174.201427 AP UART on]
[174.233261 deferred_tpm_rst_isr]
[174.235092 AP on]
[174.236381 tpm_reset_request(0, 0)]
[174.237995 tpm_reset_now(0)]
[174.244037 tpm_init]
[174.246852 tpm_manufactured: manufactured]
[174.251522 tpm_reset_now: done]
[174.253879 CCD state: UARTAP+TX UARTEC USBEC]
[174.306533 PinWeaver: Loading Tree!]
[174.371711 Skipping commit]
[174.421993 tpm_rst_asserted]
[174.439613 CCD state: UARTEC+TX USBEC]
[174.449031 CCD state: UARTEC USBEC]
[174.481918 AP UART off]
[174.776332 CCD state: UARTEC+TX USBEC]
[174.793514 CCD state: UARTEC USBEC]
[177.253379 Committing NVMEM changes.]
[177.422832 AP off]
[179.480430 AP UART on]
[179.512355 deferred_tpm_rst_isr]
[179.514244 AP on]
[179.515533 tpm_reset_request(0, 0)]
[179.517223 tpm_reset_now(0)]
[179.523220 tpm_init]
[179.526199 tpm_manufactured: manufactured]
[179.530853 tpm_reset_now: done]
[179.533317 CCD state: UARTAP+TX UARTEC USBEC]
[179.585628 PinWeaver: Loading Tree!]
[179.651145 Skipping commit]
[179.701084 tpm_rst_asserted]
[179.719356 CCD state: UARTEC USBEC]
[179.760398 AP UART off]
[180.054931 CCD state: UARTEC+TX USBEC]
[180.072101 CCD state: UARTEC USBEC]
[182.532783 Committing NVMEM changes.]
[182.701919 AP off]
[184.759471 AP UART on]
[184.791461 deferred_tpm_rst_isr]
[184.793247 AP on]
[184.794582 tpm_reset_request(0, 0)]
[184.796249 tpm_reset_now(0)]
[184.802200 tpm_init]
[184.805103 tpm_manufactured: manufactured]
[184.809803 tpm_reset_now: done]
[184.812252 CCD state: UARTAP+TX UARTEC USBEC]
[184.864601 PinWeaver: Loading Tree!]
[184.930316 Skipping commit]
[184.980113 tpm_rst_asserted]
[184.998107 CCD state: UARTEC USBEC]
[185.039031 AP UART off]
[185.334617 CCD state: UARTEC+TX USBEC]
[185.351966 CCD state: UARTEC USBEC]
[187.811702 Committing NVMEM changes.]
[187.980960 AP off]
[190.038478 AP UART on]
[190.070648 deferred_tpm_rst_isr]
[190.072517 AP on]
[190.073825 tpm_reset_request(0, 0)]
[190.075504 tpm_reset_now(0)]
[190.081554 tpm_init]
[190.084564 tpm_manufactured: manufactured]
[190.089248 tpm_reset_now: done]
[190.091613 CCD state: UARTAP+TX UARTEC USBEC]
[190.143745 PinWeaver: Loading Tree!]
[190.210071 Skipping commit]
[190.260669 tpm_rst_asserted]
[190.278594 CCD state: UARTEC+TX USBEC]
[190.287284 CCD state: UARTEC USBEC]
[190.320289 AP UART off]
[190.615257 CCD state: UARTEC+TX USBEC]
[190.632614 CCD state: UARTEC USBEC]
[193.091125 Committing NVMEM changes.]
[193.261489 AP off]
[195.319320 AP UART on]
[195.351276 deferred_tpm_rst_isr]
[195.353134 AP on]
[195.354507 tpm_reset_request(0, 0)]
[195.356258 tpm_reset_now(0)]
[195.362236 tpm_init]
[195.365230 tpm_manufactured: manufactured]
[195.369869 tpm_reset_now: done]
[195.372257 CCD state: UARTAP+TX UARTEC USBEC]
[195.424594 PinWeaver: Loading Tree!]
[195.491325 Skipping commit]
[195.543479 tpm_rst_asserted]
[195.561885 CCD state: UARTEC USBEC]
[195.593952 AP UART off]
[195.897369 CCD state: UARTEC+TX USBEC]
[195.914703 CCD state: UARTEC USBEC]
[196.746913 power button pressed]
[196.805690 AP UART on]
[196.837429 deferred_tpm_rst_isr]
[196.839172 AP on]
[196.840454 tpm_reset_request(0, 0)]
[196.842067 tpm_reset_now(0)]
[196.843467 Committing NVMEM changes.]
[196.935173 CCD state:[196.939128 tpm_init]
[196.940826 tpm_manufactured: manufactured]
[196.945583 tpm_reset_now: done]
wr_complete_handler: empty receive payload
UARTAP+TX UARTEC USBEC]
[196.987239 combo0 efs rst]
[196.987869 boot_mode: 0x01 -> 0x00]
[196.988716 Recovery Requested]
[196.989429 tpm_rst_asserted]
[197.032585 AP UART off]
[197.034538 CCD state: UARTEC USBEC]
[197.061542 CCD state: UARTEC+TX USBEC]
[197.064205 CCD state: UARTEC USBEC]
[197.236724 flog 9: [0] 00]
[197.237716 Refresh press registered]
[197.383991 CCD state: UARTEC+TX USBEC]
[197.399860 boot_mode: 0x00 -> 0x01]
[197.401885 CCD state: UARTEC USBEC]
[197.461704 Power button released, RO Check Detection stopped]
[197.464069 flog 9: [0] 01]
[197.694366 AP UART on]
[197.721260 deferred_tpm_rst_isr]
[197.723155 AP on]
[197.724460 tpm_reset_request(0, 0)]
[197.726177 tpm_reset_request: already scheduled]
[197.728473 CCD state: UARTAP+TX UARTEC USBEC]
[197.787223 AC: -F]
[197.796375 PinWeaver: Loading Tree!]
[197.864246 Skipping commit]
[197.914726 AC: R-]
[197.920108 tpm_rst_asserted]
[197.932003 CCD state: UARTEC USBEC]
[197.972846 AP UART off]
[199.946800 Committing NVMEM changes.]
[200.920959 AP off]
[202.978431 AP UART on]
[203.010337 deferred_tpm_rst_isr]
[203.012165 AP on]
[203.013515 tpm_reset_request(0, 0)]
[203.015213 tpm_reset_now(0)]
[203.021011 tpm_init]
[203.023902 tpm_manufactured: manufactured]
[203.028560 tpm_reset_now: done]
[203.030941 CCD state: UARTAP+TX UARTEC USBEC]
[203.083457 PinWeaver: Loading Tree!]
[203.150791 Skipping commit]
[203.202472 tpm_rst_asserted]
[203.219623 CCD state: UARTEC USBEC]
[203.260498 AP UART off]
[203.556110 CCD state: UARTEC+TX USBEC]
[203.573112 CCD state: UARTEC USBEC]
[206.030452 Committing NVMEM changes.]
[206.203300 AP off]
[208.260730 AP UART on]
[208.292640 deferred_tpm_rst_isr]
[208.294548 AP on]
[208.295921 tpm_reset_request(0, 0)]
[208.297676 tpm_reset_now(0)]
[208.303634 tpm_init]
[208.306480 tpm_manufactured: manufactured]
[208.311187 tpm_reset_now: done]
[208.313632 CCD state: UARTAP+TX UARTEC USBEC]
[208.365802 PinWeaver: Loading Tree!]
[208.433589 Skipping commit]
[208.484134 tpm_rst_asserted]
[208.502288 CCD state: UARTEC USBEC]
[208.543174 AP UART off]
[208.837856 CCD state: UARTEC+TX USBEC]
[208.855022 CCD state: UARTEC USBEC]
[211.313064 Committing NVMEM changes.]
[211.484981 AP off]
[213.542465 AP UART on]
[213.574371 deferred_tpm_rst_isr]
[213.576183 AP on]
[213.577499 tpm_reset_request(0, 0)]
[213.579177 tpm_reset_now(0)]
[213.585048 tpm_init]
[213.587863 tpm_manufactured: manufactured]
[213.592536 tpm_reset_now: done]
[213.594848 CCD state: UARTAP+TX UARTEC USBEC]
[213.647537 PinWeaver: Loading Tree!]
[213.715663 Skipping commit]
[213.765869 tpm_rst_asserted]
[213.782882 CCD state: UARTEC USBEC]
[213.823623 AP UART off]
[214.119529 CCD state: UARTEC+TX USBEC]
[214.136699 CCD state: UARTEC USBEC]
[216.594341 Committing NVMEM changes.]
[216.766704 AP off]
[218.824176 AP UART on]
[218.856430 deferred_tpm_rst_isr]
[218.858184 AP on]
[218.859550 tpm_reset_request(0, 0)]
[218.861297 tpm_reset_now(0)]
[218.867202 tpm_init]
[218.870037 tpm_manufactured: manufactured]
[218.874660 tpm_reset_now: done]
[218.876983 CCD state: UARTAP+TX UARTEC USBEC]
[218.929519 PinWeaver: Loading Tree!]
[218.998027 Skipping commit]
[219.048538 tpm_rst_asserted]
[219.067237 CCD state: UARTEC USBEC]
[219.107772 AP UART off]
[219.402282 CCD state: UARTEC+TX USBEC]
[219.419471 CCD state: UARTEC USBEC]
[221.876476 Committing NVMEM changes.]
[222.049381 AP off]
[224.106781 AP UART on]
[224.138309 deferred_tpm_rst_isr]
[224.140213 AP on]
[224.141521 tpm_reset_request(0, 0)]
[224.143272 tpm_reset_now(0)]
[224.149147 tpm_init]
[224.151977 tpm_manufactured: manufactured]
[224.156696 tpm_reset_now: done]
[224.159156 CCD state: UARTAP+TX UARTEC USBEC]
[224.211654 PinWeaver: Loading Tree!]
[224.280525 Skipping commit]
[224.329956 tpm_rst_asserted]
[224.347309 CCD state: UARTEC USBEC]
[224.388298 AP UART off]
[224.683662 CCD state: UARTEC+TX USBEC]
[224.700839 CCD state: UARTEC USBEC]
[227.158546 Committing NVMEM changes.]
[227.330802 AP off]
[229.388275 AP UART on]
[229.420349 deferred_tpm_rst_isr]
[229.422103 AP on]
[229.423458 tpm_reset_request(0, 0)]
[229.425056 tpm_reset_now(0)]
[229.431060 tpm_init]
[229.434062 tpm_manufactured: manufactured]
[229.438648 tpm_reset_now: done]
[229.441074 CCD state: UARTAP+TX UARTEC USBEC]
[229.493648 PinWeaver: Loading Tree!]
[229.562725 Skipping commit]
[229.614791 tpm_rst_asserted]
[229.632854 CCD state: UARTEC USBEC]
[229.664901 AP UART off]
[229.969245 CCD state: UARTEC+TX USBEC]
[229.986423 CCD state: UARTEC USBEC]
[232.440593 Committing NVMEM changes.]
[232.615615 AP off]
[234.673149 AP UART on]
[234.705226 deferred_tpm_rst_isr]
[234.706916 AP on]
[234.708221 tpm_reset_request(0, 0)]
[234.709793 tpm_reset_now(0)]
[234.715843 tpm_init]
[234.718765 tpm_manufactured: manufactured]
[234.723426 tpm_reset_now: done]
[234.725818 CCD state: UARTAP+TX UARTEC USBEC]
[234.778434 PinWeaver: Loading Tree!]
[234.847999 Skipping commit]
[234.898086 tpm_rst_asserted]
[234.914989 CCD state: UARTEC+TX USBEC]
[234.923629 CCD state: UARTEC USBEC]
[234.956634 AP UART off]
[235.251770 CCD state: UARTEC+TX USBEC]
[235.269020 CCD state: UARTEC USBEC]
[237.725311 Committing NVMEM changes.]
[237.898925 AP off]
[239.956256 AP UART on]
[239.987949 deferred_tpm_rst_isr]
[239.989749 AP on]
[239.991046 tpm_reset_request(0, 0)]
[239.992656 tpm_reset_now(0)]
[239.998622 tpm_init]
[240.001594 tpm_manufactured: manufactured]
[240.006237 tpm_reset_now: done]
[240.008735 CCD state: UARTAP+TX UARTEC USBEC]
[240.061183 PinWeaver: Loading Tree!]
[240.131046 Skipping commit]
[240.180988 tpm_rst_asserted]
[240.199039 CCD state: UARTEC USBEC]
[240.239799 AP UART off]
[240.534694 CCD state: UARTEC+TX USBEC]
[240.551883 CCD state: UARTEC USBEC]
[243.008216 Committing NVMEM changes.]
[243.181808 AP off]
[245.239063 AP UART on]
[245.270530 deferred_tpm_rst_isr]
[245.272460 AP on]
[245.273719 tpm_reset_request(0, 0)]
[245.275390 tpm_reset_now(0)]
[245.281375 tpm_init]
[245.284263 tpm_manufactured: manufactured]
[245.288925 tpm_reset_now: done]
[245.291439 CCD state: UARTAP+TX UARTEC USBEC]
[245.343723 PinWeaver: Loading Tree!]
[245.414028 Skipping commit]
[245.463802 tpm_rst_asserted]
[245.482479 CCD state: UARTEC USBEC]
[245.523818 AP UART off]
[245.818923 CCD state: UARTEC+TX USBEC]
[245.836101 CCD state: UARTEC USBEC]
[248.290817 Committing NVMEM changes.]
[248.464645 AP off]
[250.521957 AP UART on]
[250.554225 deferred_tpm_rst_isr]
[250.556091 AP on]
[250.557430 tpm_reset_request(0, 0)]
[250.559169 tpm_reset_now(0)]
[250.565048 tpm_init]
[250.567901 tpm_manufactured: manufactured]
[250.572597 tpm_reset_now: done]
[250.574981 CCD state: UARTAP+TX UARTEC USBEC]
[250.627536 PinWeaver: Loading Tree!]
[250.698303 Skipping commit]
[250.748638 tpm_rst_asserted]
[250.766235 CCD state: UARTEC USBEC]
[250.807323 AP UART off]
[251.102615 CCD state: UARTEC+TX USBEC]
[251.119823 CCD state: UARTEC USBEC]
[253.574497 Committing NVMEM changes.]
[253.749458 AP off]
[255.806701 AP UART on]
[255.838920 deferred_tpm_rst_isr]
[255.840740 AP on]
[255.842044 tpm_reset_request(0, 0)]
[255.843711 tpm_reset_now(0)]
[255.849514 tpm_init]
[255.852577 tpm_manufactured: manufactured]
[255.857170 tpm_reset_now: done]
[255.859596 CCD state: UARTAP+TX UARTEC USBEC]
[255.912185 PinWeaver: Loading Tree!]
[255.983463 Skipping commit]
[256.033405 tpm_rst_asserted]
[256.050979 CCD state: UARTEC USBEC]
[256.092502 AP UART off]
[256.387298 CCD state: UARTEC+TX USBEC]
[256.404491 CCD state: UARTEC USBEC]
[258.859069 Committing NVMEM changes.]
[259.034233 AP off]
[261.091350 AP UART on]
[261.123744 deferred_tpm_rst_isr]
[261.125629 AP on]
[261.126892 tpm_reset_request(0, 0)]
[261.128570 tpm_reset_now(0)]
[261.134456 tpm_init]
[261.137271 tpm_manufactured: manufactured]
[261.141925 tpm_reset_now: done]
[261.144317 CCD state: UARTAP+TX UARTEC USBEC]
[261.197032 PinWeaver: Loading Tree!]
[261.268493 Skipping commit]
[261.318180 tpm_rst_asserted]
[261.336162 CCD state: UARTEC USBEC]
[261.377128 AP UART off]
[261.672584 CCD state: UARTEC+TX USBEC]
[261.689758 CCD state: UARTEC USBEC]
[264.143840 Committing NVMEM changes.]
[264.319034 AP off]
[266.376274 AP UART on]
[266.408718 deferred_tpm_rst_isr]
[266.410606 AP on]
[266.411933 tpm_reset_request(0, 0)]
[266.413646 tpm_reset_now(0)]
[266.419639 tpm_init]
[266.422618 tpm_manufactured: manufactured]
[266.427272 tpm_reset_now: done]
[266.429580 CCD state: UARTAP+TX UARTEC USBEC]
[266.482013 PinWeaver: Loading Tree!]
[266.553886 Skipping commit]
[266.603103 tpm_rst_asserted]
[266.620819 CCD state: UARTEC USBEC]
[266.661544 AP UART off]
[266.957069 CCD state: UARTEC+TX USBEC]
[266.974246 CCD state: UARTEC USBEC]
[269.429088 Committing NVMEM changes.]
[269.603931 AP off]
[271.661247 AP UART on]
[271.693649 deferred_tpm_rst_isr]
[271.695491 AP on]
[271.696739 tpm_reset_request(0, 0)]
[271.698390 tpm_reset_now(0)]
[271.704395 tpm_init]
[271.707256 tpm_manufactured: manufactured]
[271.711868 tpm_reset_now: done]
[271.714214 CCD state: UARTAP+TX UARTEC USBEC]
[271.766677 PinWeaver: Loading Tree!]
[271.838687 Skipping commit]
[271.889301 tpm_rst_asserted]
[271.906826 CCD state: UARTEC+TX USBEC]
[271.915927 CCD state: UARTEC USBEC]
[271.948806 AP UART off]
[272.243717 CCD state: UARTEC+TX USBEC]
[272.260948 CCD state: UARTEC USBEC]
[274.713668 Committing NVMEM changes.]
[274.890136 AP off]
[276.947463 AP UART on]
[276.979377 deferred_tpm_rst_isr]
[276.981189 AP on]
[276.982490 tpm_reset_request(0, 0)]
[276.984191 tpm_reset_now(0)]
[276.990253 tpm_init]
[276.993221 tpm_manufactured: manufactured]
[276.997879 tpm_reset_now: done]
[277.000263 CCD state: UARTAP+TX UARTEC USBEC]
[277.052627 PinWeaver: Loading Tree!]
[277.124938 Skipping commit]
[277.175182 tpm_rst_asserted]
[277.193275 CCD state: UARTEC USBEC]
[277.234447 AP UART off]
[277.529685 CCD state: UARTEC+TX USBEC]
[277.546878 CCD state: UARTEC USBEC]
[279.999759 Committing NVMEM changes.]
[280.176002 AP off]
[282.233428 AP UART on]
[282.265468 deferred_tpm_rst_isr]
[282.267219 AP on]
[282.268531 tpm_reset_request(0, 0)]
[282.270252 tpm_reset_now(0)]
[282.276264 tpm_init]
[282.279228 tpm_manufactured: manufactured]
[282.283893 tpm_reset_now: done]
[282.286178 CCD state: UARTAP+TX UARTEC USBEC]
[282.338665 PinWeaver: Loading Tree!]
[282.411823 Skipping commit]
[282.461246 tpm_rst_asserted]
[282.478931 CCD state: UARTEC+TX USBEC]
[282.487487 CCD state: UARTEC USBEC]
[282.520439 AP UART off]
[282.815643 CCD state: UARTEC+TX USBEC]
[282.832839 CCD state: UARTEC USBEC]
[285.285694 Committing NVMEM changes.]
[285.462097 AP off]
[287.519519 AP UART on]
[287.551841 deferred_tpm_rst_isr]
[287.553680 AP on]
[287.555011 tpm_reset_request(0, 0)]
[287.556758 tpm_reset_now(0)]
[287.562725 tpm_init]
[287.565681 tpm_manufactured: manufactured]
[287.570343 tpm_reset_now: done]
[287.572715 CCD state: UARTAP+TX UARTEC USBEC]
[287.625030 PinWeaver: Loading Tree!]
[287.698299 Skipping commit]
[287.749011 tpm_rst_asserted]
[287.766124 CCD state: UARTEC USBEC]
[287.807434 AP UART off]
[288.102909 CCD state: UARTEC+TX USBEC]
[288.120136 CCD state: UARTEC USBEC]
[290.572177 Committing NVMEM changes.]
[290.749851 AP off]
[292.807277 AP UART on]
[292.838932 deferred_tpm_rst_isr]
[292.840702 AP on]
[292.842006 tpm_reset_request(0, 0)]
[292.843669 tpm_reset_now(0)]
[292.849658 tpm_init]
[292.852531 tpm_manufactured: manufactured]
[292.857192 tpm_reset_now: done]
[292.859642 CCD state: UARTAP+TX UARTEC USBEC]
[292.912239 PinWeaver: Loading Tree!]
[292.985755 Skipping commit]
[293.036888 tpm_rst_asserted]
[293.053646 CCD state: UARTEC+TX USBEC]
[293.062873 CCD state: UARTEC USBEC]
[293.095836 AP UART off]
[293.390579 CCD state: UARTEC+TX USBEC]
[293.407722 CCD state: UARTEC USBEC]
[295.859066 Committing NVMEM changes.]
[296.037723 AP off]
[298.095092 AP UART on]
[298.127510 deferred_tpm_rst_isr]
[298.129314 AP on]
[298.130638 tpm_reset_request(0, 0)]
[298.132289 tpm_reset_now(0)]
[298.138286 tpm_init]
[298.141254 tpm_manufactured: manufactured]
[298.145912 tpm_reset_now: done]
[298.148319 CCD state: UARTAP+TX UARTEC USBEC]
[298.200790 PinWeaver: Loading Tree!]
[298.274681 Skipping commit]
[298.326637 tpm_rst_asserted]
[298.345676 CCD state: UARTEC USBEC]
[298.378124 AP UART off]
[298.680683 CCD state: UARTEC+TX USBEC]
[298.698036 CCD state: UARTEC USBEC]
[301.147819 Committing NVMEM changes.]
[301.327438 AP off]
[303.384838 AP UART on]
[303.416141 deferred_tpm_rst_isr]
[303.418037 AP on]
[303.419307 tpm_reset_request(0, 0)]
[303.420936 tpm_reset_now(0)]
[303.426914 tpm_init]
[303.429836 tpm_manufactured: manufactured]
[303.434478 tpm_reset_now: done]
[303.436931 CCD state: UARTAP+TX UARTEC USBEC]
[303.489402 PinWeaver: Loading Tree!]
[303.563873 Skipping commit]
[303.615367 tpm_rst_asserted]
[303.633720 CCD state: UARTEC USBEC]
[303.674777 AP UART off]
[303.969230 CCD state: UARTEC+TX USBEC]
[303.986579 CCD state: UARTEC USBEC]
[306.436355 Committing NVMEM changes.]
[306.616207 AP off]
[308.673572 AP UART on]
[308.705513 deferred_tpm_rst_isr]
[308.707393 AP on]
[308.708702 tpm_reset_request(0, 0)]
[308.710395 tpm_reset_now(0)]
[308.716224 tpm_init]
[308.719047 tpm_manufactured: manufactured]
[308.723705 tpm_reset_now: done]
[308.726158 CCD state: UARTAP+TX UARTEC USBEC]
[308.778675 PinWeaver: Loading Tree!]
[308.853462 Skipping commit]
[308.905471 tpm_rst_asserted]
[308.923484 CCD state: UARTEC USBEC]
[308.964996 AP UART off]
[309.259815 CCD state: UARTEC+TX USBEC]
[309.277160 CCD state: UARTEC USBEC]
[311.725627 Committing NVMEM changes.]
[311.906291 AP off]
[313.963592 AP UART on]
[313.995605 deferred_tpm_rst_isr]
[313.997413 AP on]
[313.998760 tpm_reset_request(0, 0)]
[314.000484 tpm_reset_now(0)]
[314.006492 tpm_init]
[314.009471 tpm_manufactured: manufactured]
[314.014137 tpm_reset_now: done]
[314.016517 CCD state: UARTAP+TX UARTEC USBEC]
[314.068904 PinWeaver: Loading Tree!]
[314.145404 Skipping commit]
[314.195766 tpm_rst_asserted]
[314.214584 CCD state: UARTEC USBEC]
[314.255126 AP UART off]
[314.550006 CCD state: UARTEC+TX USBEC]
[314.567325 CCD state: UARTEC USBEC]
[317.016017 Committing NVMEM changes.]
[317.196605 AP off]
[319.253948 AP UART on]
[319.286125 deferred_tpm_rst_isr]
[319.287940 AP on]
[319.289302 tpm_reset_request(0, 0)]
[319.290992 tpm_reset_now(0)]
[319.296791 tpm_init]
[319.299762 tpm_manufactured: manufactured]
[319.304401 tpm_reset_now: done]
[319.306640 CCD state: UARTAP+TX UARTEC USBEC]
[319.359287 PinWeaver: Loading Tree!]
[319.434764 Skipping commit]
[319.484703 tpm_rst_asserted]
[319.503364 CCD state: UARTEC USBEC]
[319.544242 AP UART off]
[319.838653 CCD state: UARTEC+TX USBEC]
[319.855976 CCD state: UARTEC USBEC]
[322.306179 Committing NVMEM changes.]
[322.485534 AP off]
[324.542602 AP UART on]
[324.574733 deferred_tpm_rst_isr]
[324.576614 AP on]
[324.577884 tpm_reset_request(0, 0)]
[324.579582 tpm_reset_now(0)]
[324.585655 tpm_init]
[324.588619 tpm_manufactured: manufactured]
[324.593276 tpm_reset_now: done]
[324.595718 CCD state: UARTAP+TX UARTEC USBEC]
[324.647960 PinWeaver: Loading Tree!]
[324.725467 Skipping commit]
[324.776287 tpm_rst_asserted]
[324.794067 CCD state: UARTEC+TX USBEC]
[324.802993 CCD state: UARTEC USBEC]
[324.835945 AP UART off]
[325.130912 CCD state: UARTEC+TX USBEC]
[325.148342 CCD state: UARTEC USBEC]
[327.595195 Committing NVMEM changes.]
[327.777122 AP off]
[329.834442 AP UART on]
[329.866363 deferred_tpm_rst_isr]
[329.868225 AP on]
[329.869533 tpm_reset_request(0, 0)]
[329.871303 tpm_reset_now(0)]
[329.877365 tpm_init]
[329.880180 tpm_manufactured: manufactured]
[329.884834 tpm_reset_now: done]
[329.887313 CCD state: UARTAP+TX UARTEC USBEC]
[329.939777 PinWeaver: Loading Tree!]
[330.017700 Skipping commit]
[330.067935 tpm_rst_asserted]
[330.085765 CCD state: UARTEC USBEC]
[330.126628 AP UART off]
[330.422496 CCD state: UARTEC+TX USBEC]
[330.439838 CCD state: UARTEC USBEC]
[332.886802 Committing NVMEM changes.]
[333.068767 AP off]
[335.126052 AP UART on]
[335.158756 deferred_tpm_rst_isr]
[335.160594 AP on]
[335.161975 tpm_reset_request(0, 0)]
[335.163684 tpm_reset_now(0)]
[335.169696 tpm_init]
[335.172672 tpm_manufactured: manufactured]
[335.177326 tpm_reset_now: done]
[335.179714 CCD state: UARTAP+TX UARTEC USBEC]
[335.231994 PinWeaver: Loading Tree!]
[335.309879 Skipping commit]
[335.360340 tpm_rst_asserted]
[335.378059 CCD state: UARTEC+TX USBEC]
[335.386512 CCD state: UARTEC USBEC]
[335.419467 AP UART off]
[335.714885 CCD state: UARTEC+TX USBEC]
[335.732200 CCD state: UARTEC USBEC]
[338.179206 Committing NVMEM changes.]
[338.361171 AP off]
[340.418449 AP UART on]
[340.450389 deferred_tpm_rst_isr]
[340.452236 AP on]
[340.453601 tpm_reset_request(0, 0)]
[340.455280 tpm_reset_now(0)]
[340.461257 tpm_init]
[340.464073 tpm_manufactured: manufactured]
[340.468742 tpm_reset_now: done]
[340.471126 CCD state: UARTAP+TX UARTEC USBEC]
[340.523582 PinWeaver: Loading Tree!]
[340.602371 Skipping commit]
[340.651885 tpm_rst_asserted]
[340.670127 CCD state: UARTEC USBEC]
[340.711078 AP UART off]
[341.006549 CCD state: UARTEC+TX USBEC]
[341.023883 CCD state: UARTEC USBEC]
[343.470634 Committing NVMEM changes.]
[343.652698 AP off]
[345.710170 AP UART on]
[345.742145 deferred_tpm_rst_isr]
[345.743953 AP on]
[345.745311 tpm_reset_request(0, 0)]
[345.746994 tpm_reset_now(0)]
[345.752956 tpm_init]
[345.755897 tpm_manufactured: manufactured]
[345.760589 tpm_reset_now: done]
[345.762969 CCD state: UARTAP+TX UARTEC USBEC]
[345.815464 PinWeaver: Loading Tree!]
[345.894535 Skipping commit]
[345.943729 tpm_rst_asserted]
[345.962142 CCD state: UARTEC USBEC]
[346.002605 AP UART off]
[346.298236 CCD state: UARTEC+TX USBEC]
[346.315570 CCD state: UARTEC USBEC]
[348.762439 Committing NVMEM changes.]
[348.944557 AP off]
[351.001834 AP UART on]
[351.033260 deferred_tpm_rst_isr]
[351.035083 AP on]
[351.036331 tpm_reset_request(0, 0)]
[351.037998 tpm_reset_now(0)]
[351.043956 tpm_init]
[351.046871 tpm_manufactured: manufactured]
[351.051574 tpm_reset_now: done]
[351.053962 CCD state: UARTAP+TX UARTEC USBEC]
[351.106594 PinWeaver: Loading Tree!]
[351.185939 Skipping commit]
[351.236297 tpm_rst_asserted]
[351.254783 CCD state: UARTEC USBEC]
[351.295505 AP UART off]
[351.590297 CCD state: UARTEC+TX USBEC]
[351.607620 CCD state: UARTEC USBEC]
[354.053382 Committing NVMEM changes.]
[354.237117 AP off]
[356.294555 AP UART on]
[356.325893 deferred_tpm_rst_isr]
[356.327720 AP on]
[356.328990 tpm_reset_request(0, 0)]
[356.330650 tpm_reset_now(0)]
[356.336662 tpm_init]
[356.339599 tpm_manufactured: manufactured]
[356.344215 tpm_reset_now: done]
[356.346672 CCD state: UARTAP+TX UARTEC USBEC]
[356.399124 PinWeaver: Loading Tree!]
[356.478950 Skipping commit]
[356.528942 tpm_rst_asserted]
[356.547534 CCD state: UARTEC USBEC]
[356.588748 AP UART off]
[356.882869 CCD state: UARTEC+TX USBEC]
[356.900199 CCD state: UARTEC USBEC]
[359.346080 Committing NVMEM changes.]
[359.529747 AP off]
[361.587055 AP UART on]
[361.618507 deferred_tpm_rst_isr]
[361.620346 AP on]
[361.621643 tpm_reset_request(0, 0)]
[361.623291 tpm_reset_now(0)]
[361.629203 tpm_init]
[361.632167 tpm_manufactured: manufactured]
[361.636772 tpm_reset_now: done]
[361.639236 CCD state: UARTAP+TX UARTEC USBEC]
[361.691852 PinWeaver: Loading Tree!]
[361.772075 Skipping commit]
[361.821601 tpm_rst_asserted]
[361.839092 CCD state: UARTEC+TX USBEC]
[361.848045 CCD state: UARTEC USBEC]
[361.880977 AP UART off]
neither of those will help, I need to have you flash a custom build which will output to ttyUSB1, so I can see what the PSP/coreboot/edk2 are doing.
msg me on Discord or DM me here since I can’t just drop a file
I cannot find your Discord ID on the interwebs. My Discord ID is mbledk. Please add me.
