Hello!
My company got rid of their ASUS Meet Compute system and I asked if I could have it. They agreed, but I’ve been unable to disable Write Protection. I know on MrChromebox it says that the WP Method is “CR50 (SuzyQ), jumper” but I’ve been unable to figure out where to “jump” it on the motherboard. Does anyone have any ideas?

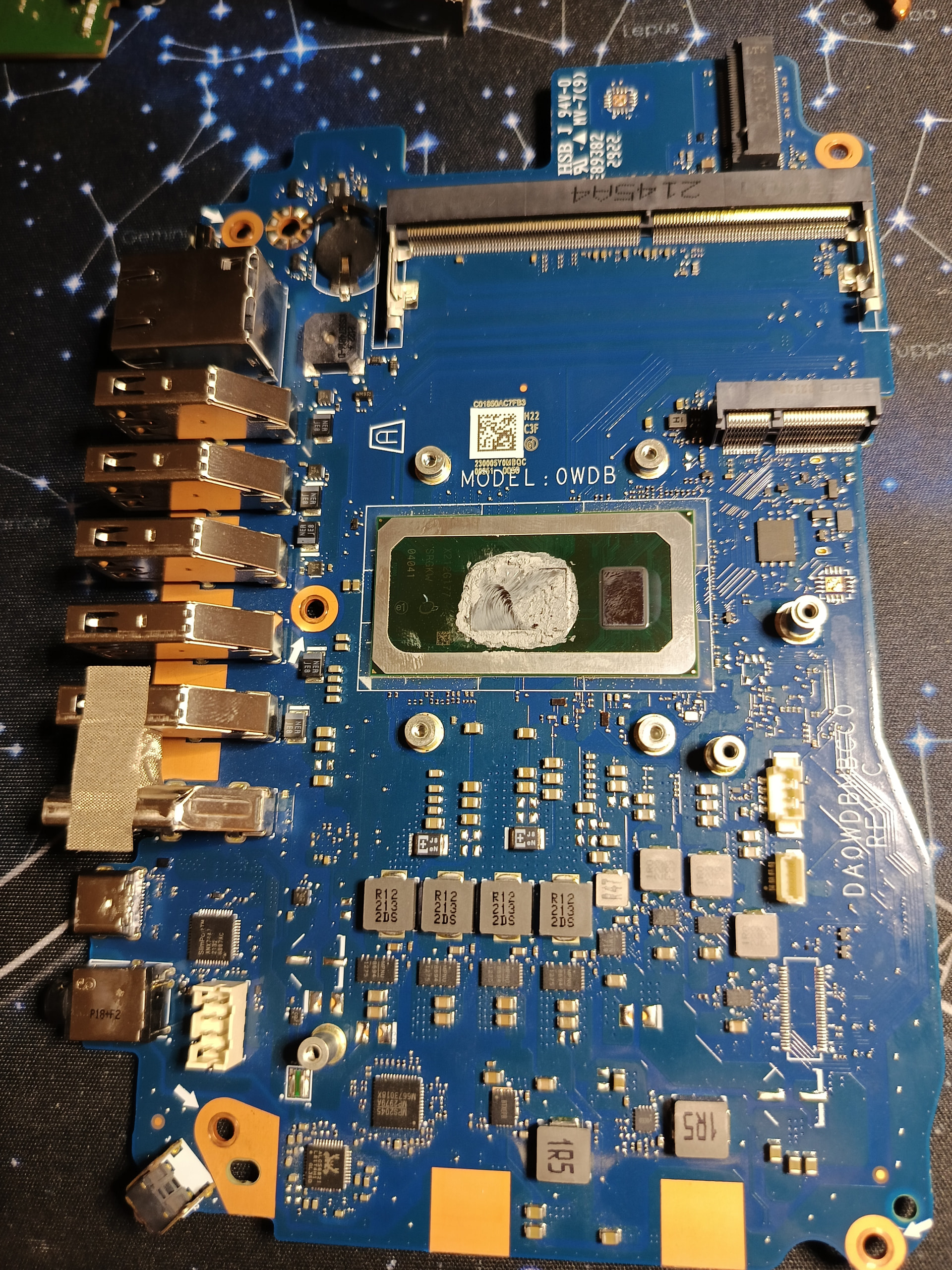

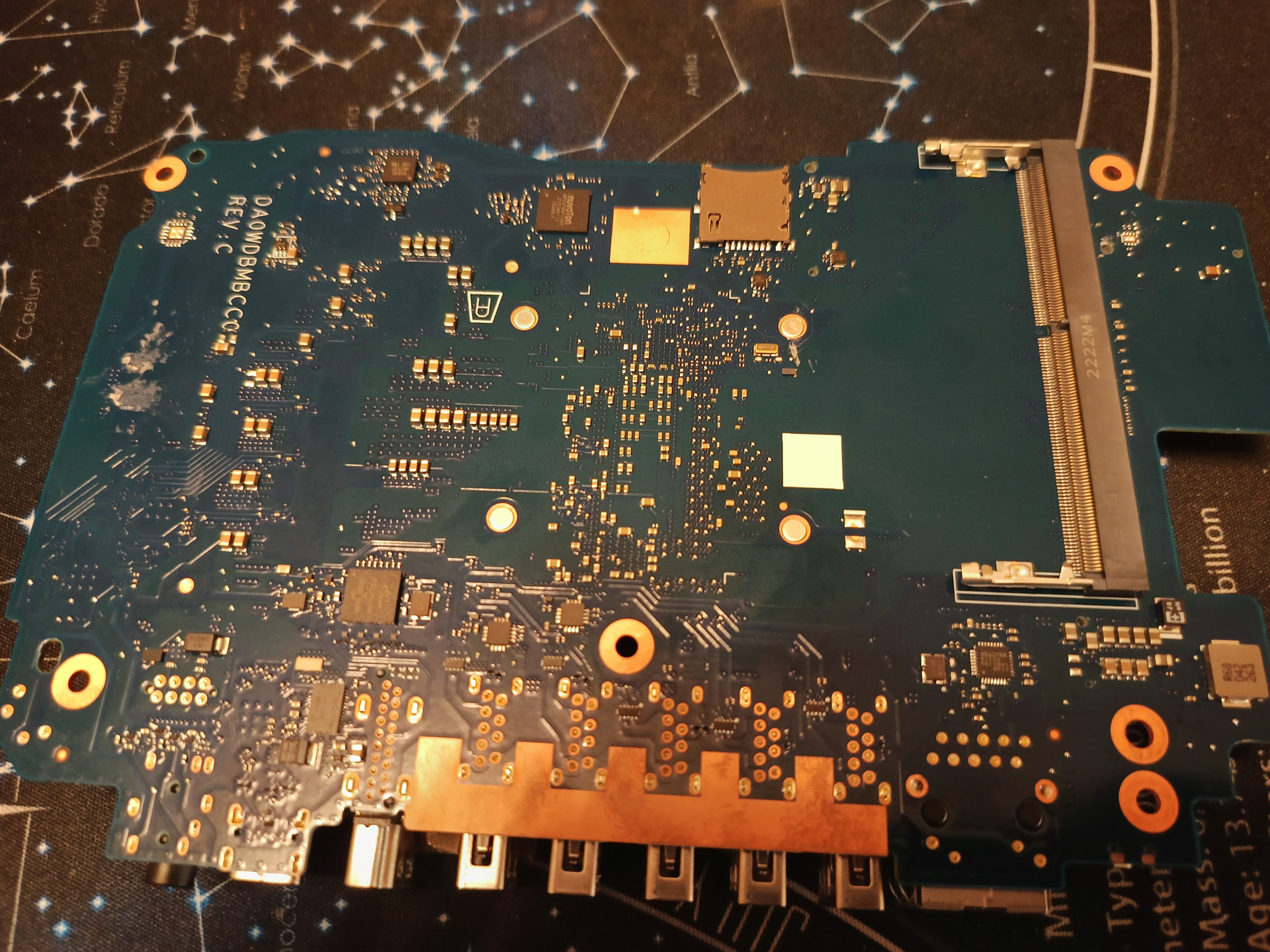

if I don’t have a pic on my site, it’s because I don’t know where the jumper is. Would need pics of both sides of the bare board (ie, remove SSD, RAM, fan, etc) to try and identify. Assume it would look similar to the other CML Chromeboxes, which I do have pictures of

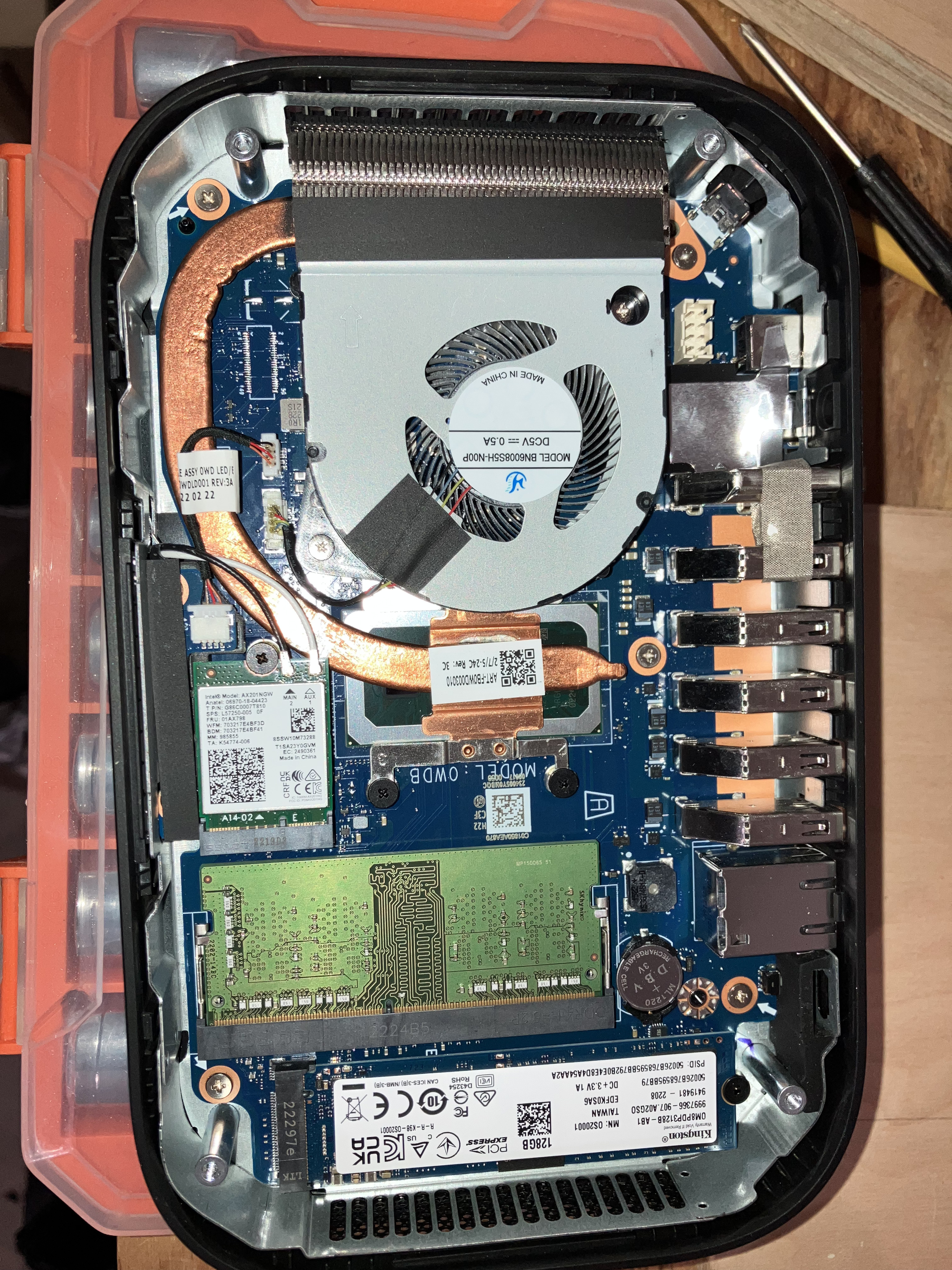

Mr. Chromebox has circled the location. The screw that holds the m.2 drive in place fits the hole, but the screw head is too small to make the jumper connections. The silver parts around the screw hole need to be covered to complete the connection. I used a small washer along with the m.2 screw and that did the trick. I left mine jumped so I could easily make future bios updates.
